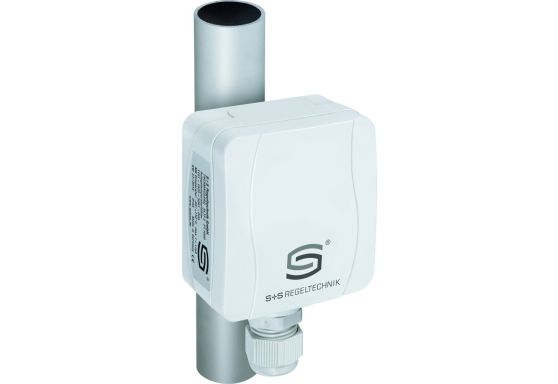

S+S Surface contact / tube contact tempe­rature sensor - ALTF02 Ni1000

Introduction

The S+S Surface contact / tube contact temperature sensor - ALTF02 Ni1000 from S+S Regeltechnik GmbH is a reliable and cost-effective solution for temperature measurement applications. With its passive output and durable plastic housing, including a snap-on cover and tension band, this sensor is designed to provide accurate readings for surface temperatures of solid objects.

Key Features

- Sensor: Ni1000, DIN EN 43760, Class B - Measurement range: -30 to +110 °C - Suitable for surfaces such as pipes and heating systems - Housing: UV-resistant plastic, Polyamide material, with snap-on cover - Dimensions: 72 x 64 x 37.8 mm (Tyr 01) - Cable gland: M 16 x 1.5; with strain relief, replaceable, max. inner diameter 10.4 mm - Process connection: Endless tension band with metal lock included - Protection rating: IP 54 (according to EN 60 529) certified by TÜV SÜD - EAN: 4251325600031

Benefits for Customers

The ALTF02 Ni1000 sensor provides accurate temperature measurements and is suitable for a variety of surface temperature monitoring applications. With its durable construction and user-friendly design, it offers reliable performance and ease of installation.

Technical Specifications

- Measurement range: -30 to +110 °C - Max. permissible air humidity: < 95% RH, non-condensing air - Housing material: UV-resistant plastic, Polyamide, color: Traffic white (similar to RAL 9016), with snap-on cover - Cable gland: M 16 x 1.5; with strain relief, replaceable, max. inner diameter 10.4 mm - Process connection: Endless tension band with metal lock included - Protection rating: IP 54 (according to EN 60 529) certified by TÜV SÜD

Additional Information

For further technical data and details on the ALTF02 Ni1000 temperature sensor, please refer to the manufacturer's official website or product datasheet for the most up-to-date information.
