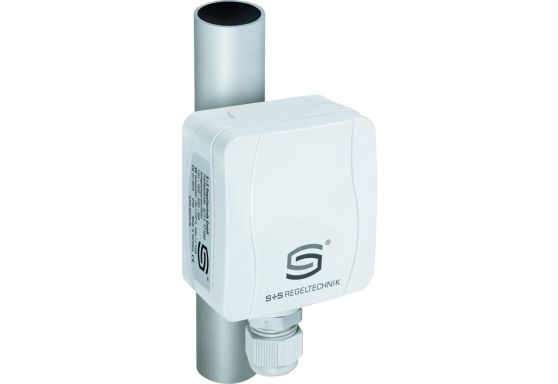

S+S Surface contact / tube contact tempe­rature sensor - ALTF02 NTC10K

Introduction:

The S+S Surface contact / tube contact temperature sensor - ALTF02 NTC10K delivers reliable and cost-effective temperature monitoring solutions for various applications. Manufactured by S+S Regeltechnik GmbH, this sensor ensures accurate temperature measurement with a passive output in a durable plastic housing, complete with a snap-on cover and tensioning strap.

Key Features:

- Sensor Type: NTC10kOhm - Measurement Range: -30°C to +110°C - Housing Material: UV-resistant plastic, Polyamide with 30% glass beads reinforcement - Housing Color: Traffic White (similar to RAL 9016) with snap-on cover - Dimensions: 72 x 64 x 37.8 mm (Type 01) - Cable Gland: M 16 x 1.5; with strain relief, replaceable, max. inner diameter 10.4 mm - Process Connection: Endless tensioning strap with metal lock (included) - Protection Class: IP 54 (according to EN 60 529) certified by TÜV SÜD - EAN: 4251325600062

Benefits:

- Cost-effective solution for temperature monitoring - Suitable for surface temperature measurement of solid objects - Ideal for monitoring the temperature of flowing mediums in pipes (e.g., water temperature) - Versatile application in pipelines, tubes (e.g., cold and hot water), and heating systems

Technical Specifications:

- Operates within a temperature range of -30°C to +110°C - Maximum permissible air humidity: < 95% RH, non-condensing air - Robust housing material for reliable performance in various environments - Easy installation with a replaceable cable gland and tensioning strap for secure attachment - IP 54 protection class ensures resistance to dust and water ingress - TÜV SÜD certified for quality assurance

Current Technical Data:

Please refer to reputable sources such as the manufacturer's website or official data sheets for the most up-to-date technical information on the S+S Surface contact / tube contact temperature sensor - ALTF02 NTC10K by S+S Regeltechnik GmbH.
