S+S Surface contact / tube contact tempe­rature sensor - ALTF02 Pt1000

S+S Surface Contact / Tube Contact Temperature Sensor - ALTF02 Pt1000 Overview

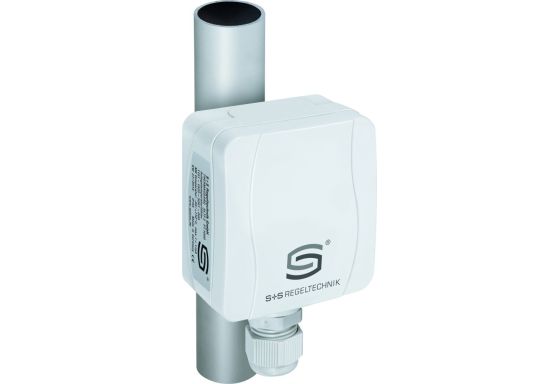

The S+S Surface Contact / Tube Contact Temperature Sensor - ALTF02 Pt1000, manufactured by S+S Regeltechnik GmbH, is an affordable pipe resistance thermometer with a passive output, housed in a durable plastic casing with a snap-on cover, including a tension band. These contact sensors are designed for measuring surface temperatures of solid objects, with at least one contact area that touches the surface to be measured.

Key Features and Benefits

• Designed for temperature measurement in pipes and heating systems.
• Accurately measures the temperature of the medium inside the pipe.
• High-quality Pt1000 sensor in accordance with DIN EN 60751, Class B.
• UV-resistant plastic housing for durability and longevity.
• Easy to install with a snap-on cover and included tension band.
• Waterproof design with an IP 54 protection rating.

Technical Specifications

• Sensor: Pt1000, DIN EN 60751, Class B
• Measurement Range: -30°C to +110°C
• Max. Air Humidity: < 95% RH, non-condensing
• Material: UV-resistant plastic, Polyamide with 30% glass bead reinforcement
• Dimensions: 72 x 64 x 37.8 mm
• Cable Gland: M16 x 1.5 with strain relief
• Process Connection: Endless tension band with metal lock
• Protection Class: IP 54 (EN 60 529)

Current Technical Data

For the latest technical data on the S+S Surface Contact / Tube Contact Temperature Sensor - ALTF02 Pt1000, please refer to reputable sources such as the manufacturer's website, official datasheets, or authorized dealers.
