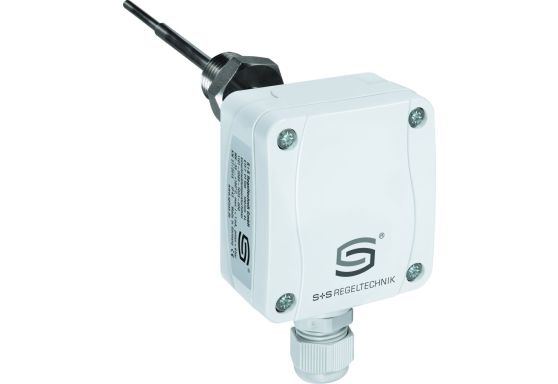

S+S Screw-in tempe­rature sensor / immersion tempe­rature sensor with neck tube (stepped once) - ETF7 NiTK 150mm

Introducing the Screw-in Temperature Sensor with Neck Tube - ETF7 NiTK 150mm

Discover the cutting-edge S+S ETF7 NiTK 150mm Screw-in Temperature Sensor/Immersion Temperature Sensor with neck tube, designed for ultra-responsive temperature monitoring in hydraulics and other fast-paced industries. This high-quality sensor is crafted by S+S Regeltechnik GmbH, guaranteeing precision and reliability in temperature readings.

Key Features and Benefits

• Ultra-fast response time for swift temperature control operations
• Passive output design for seamless integration
• Stainless steel protective tube for durability
• UV-resistant polyamide housing for longevity
• Waterproof and dustproof IP65 rating for enhanced protection

Technical Specifications

• Sensor: Ni1000Tk5000 (TCR=5000ppm/K)
• Temperature Range: -35°C to +150°C
• Ambient Humidity: < 95% RH, non-condensing air
• Plastic housing reinforced with 30% glass beads
• Dimensions: 72 x 64 x 37.8 mm
• Installation Length: 150 mm
• Cable Gland: M16 x 1.5 with strain relief
• Process Connection: G ½" screw-in fitting
• Protection Tube: Stainless steel, 1.4571, V4A, G ½", SW 27
• Neck Tube Length: 25 mm
• Max. Inner Diameter: 10.4 mm
• Protection Class: IP65 as per EN 60 529
• TÜV SÜD certified
• EAN: 4251325601526
