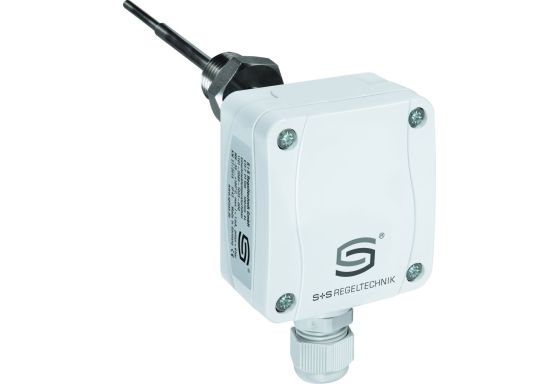

S+S Screw-in tempe­rature sensor / immersion tempe­rature sensor with neck tube (stepped once) - ETF7 NiTK 250mm

Introducing the S+S Screw-in Temperature Sensor / Immersion Temperature Sensor

Enhance your temperature monitoring with the S+S Screw-in Temperature Sensor / Immersion Temperature Sensor with a neck tube (stepped once), ETF7 NiTK 250mm from S+S Regeltechnik GmbH. This highly responsive resistance thermometer/diving temperature sensor offers rapid temperature sensing capabilities, making it ideal for quick temperature and control processes, such as those in hydraulic systems.

Key Technical Features

• Sensor: Ni1000Tk5000 (TCR=5000ppm/K)
• Measuring Range: -35...+150 °C
• Allowed Air Humidity: < 95% RH, non-condensing air
• Housing: Plastic, UV-resistant, material polyamide, 30% glass ball reinforced, with quick-release screws
• Dimensions: 72 x 64 x 37.8 mm
• Insertion Length: 250 mm
• Cable Gland: M 16 x 1.5; with strain relief, interchangeable, max. inside diameter 10.4 mm
• Process Connection: Screw-in connector with G ½" thread
• Protective Tube: Stainless steel 1.4571, V4A, G ½", SW 27, pmax = 6 bar, Ø = 6 mm, tapered to Ø = 4 mm
• Neck Tube length: 25 mm
• Installation Length: 100 - 250 mm
• Protection Class: IP 65 (according to EN 60 529), TÜV SÜD approved
• EAN: 4251325601533

Advantages and Benefits

Experience precise and reliable temperature measurements with the ETF7 NiTK 250mm sensor. The fast response time ensures accurate temperature monitoring, especially in dynamic temperature and control applications, such as those found in hydraulic systems.

Current Technical Data

For the most up-to-date technical information on the S+S Screw-in Temperature Sensor / Immersion Temperature Sensor - ETF7 NiTK 250mm, please refer to reputable sources such as the manufacturer's website, official data sheets, or authorized dealers.
