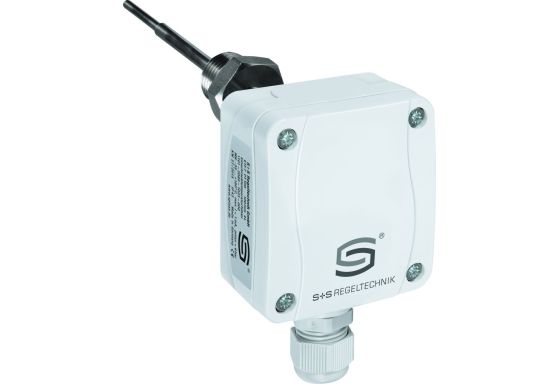

S+S Screw-in tempe­rature sensor / immersion tempe­rature sensor with neck tube (stepped once) - ETF7 Pt1000 100mm

Introducing the S+S ETF7 Pt1000 100mm Screw-in Temperature Sensor

Discover the highly responsive S+S Screw-in Temperature Sensor designed for fast temperature detection in various applications, including hydraulic systems. The ETF7 Pt1000 model features a neck tube and a stepped protective tube made of stainless steel, ensuring reliable performance and durability.

Key Features and Benefits

- Very fast response time, ideal for quick temperature and control processes.
- Sensor type: Pt1000, DIN EN 60751, Class B.
- Wide temperature range: -35°C to +150°C.
- Housing made of UV-resistant polyamide with quick-release screws for swift installation.
- Compact design with dimensions of 72 x 64 x 37.8 mm (Tyr 1).

Technical Specifications

- Cable gland: M16 x 1.5 with strain relief, replaceable, max internal diameter of 10.4 mm.
- Process connection: G ½" threaded sensor with a stainless steel protective tube (1.4571, V4A).
- Protection tube diameter: 6 mm tapered to 4 mm for precise measurements.
- Neck tube length: 25 mm with installation length ranging from 100 to 250 mm.
- IP 65 protection rating for reliable performance in challenging environments.

Additional Information

Ensure fast and accurate temperature readings with the S+S ETF7 Pt1000 Screw-in Temperature Sensor. Trust in the quality and precision provided by S+S Regeltechnik GmbH, a leading manufacturer in temperature sensing technology. The sensor's high responsiveness and durability make it the perfect choice for demanding applications.
