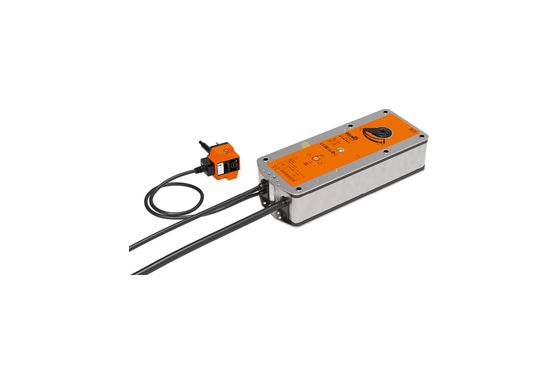

Belimo fire damper actuator BF230-TN-2

Fire damper actuator with thermoelectric tripping device BAT (72°C) Current reduction in rest position Torque motor 18 Nm Running time motor 120 s Torque fail-safe 12 Nm Running time fail-safe 16 s Nominal voltage AC 230 V Nominal voltage frequency 50/60 Hz Power consumption in operation 8.5 W Power consumption in rest position 3 W Power consumption for wire sizing 11 VA Control Open/close Auxiliary switch 2x SPDT (5° / 80°) Cable 1 m Form fit 12x12 mm, continuous hollow shaft Manual override with position stop Direction of motion selectable by mounting L/R Protection class IEC/EN II, reinforced insulation Parts included Hand crank, Pointer, Protective bag Manufacturer Belimo Type BF230-TN-2
