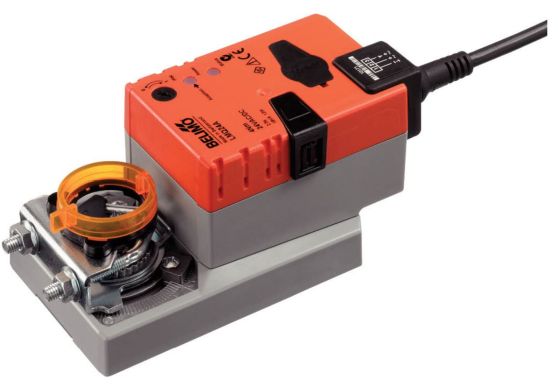

Belimo - damper actuator LMQ24A - 4Nm
AVAILABLE
Processing time
~ 6 workingdays
(valid for DE, other countries may differ)
Predecessor: LMQ24
Open - Close / 3-point control
Supply voltage: AC / DC 24V
Connection cable: PVC, 1 m
Universal clamp block 8–26 mm
Operating time: 2.5 s
Air damper size up to approx. 0.5 m²
Torque: 4 Nm
Rated voltage: AC 100 ... 240 V
Rotation direction: selectable (clockwise/counterclockwise)
Manual adjustment: lockable with pushbutton
Rotation angle limit: mechanically integrated
Protection class: IP54
| Weight | 2.00 kg |
|---|---|
| Torque | 4 Nm |
| Voltage | AC/DC 24 V |
| Flap Size | 0.8 m² |
| IP protection class | IP54 |
| Runtime | 2,5 sec |
| Series | LMQ |
| Predecessor | LMQ24 |
| gtin | 07630498112447 |
