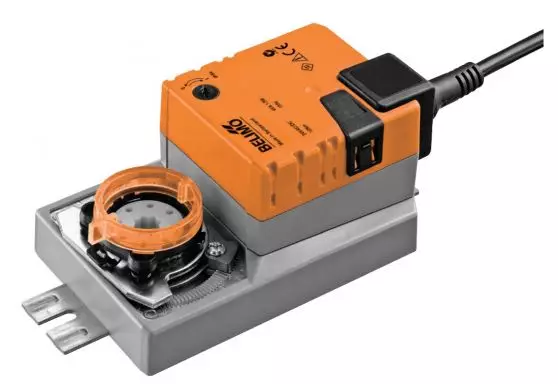

Belimo - damper actuator NM24A-SR-F - 10Nm
AVAILABLE
Processing time
~ 6 workingdays
(valid for DE, other countries may differ)
damper actuator, Formschluss 8 x 8 mm
10 Nm,
150 s, 95°
AC/DC 24 V, stetig
IP 54,
manual override arretierbar
control DC 0...10 V
workspace DC 2...10 V
position feedbackDC 2...10 V
connection cablePVC 1 m
direction of rotation wählbar (right/left)
rotation limitation mechanically integrated
Achsmitnahme Formschluss 8 x 8 mm
| Weight | 1.00 kg |
|---|---|
| Torque | 10 Nm |
| Voltage | AC/DC 24 V |
| Flap Size | 2 m² |
| IP protection class | IP54 |
| Runtime | 150 sec |
| Series | NM |
