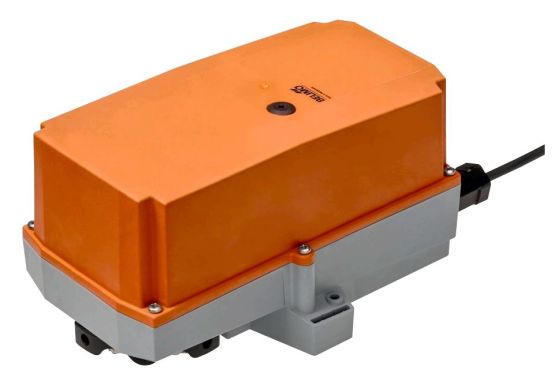

Belimo - damper actuator SM230P - 20Nm
AVAILABLE
Processing time
~ 5 Arbeitstage
(valid for DE, other countries may differ)
20 Nm,
150 s,
AC 230 V,
open-close,
3-Punkt
IP 66/67,
manual override push button lockable
control Changeover / closing contact
connection cableFRNC 1 m
direction of rotation wählbar (right/left)
rotation limitation mechanically integrated
| Weight | 2.00 kg |
|---|---|
| Torque | 20 Nm |
| Voltage | AC 230 V |
| Flap Size | 4 m² |
| IP protection class | IP66 |
| Runtime | 150 sec |
| Series | SM |
