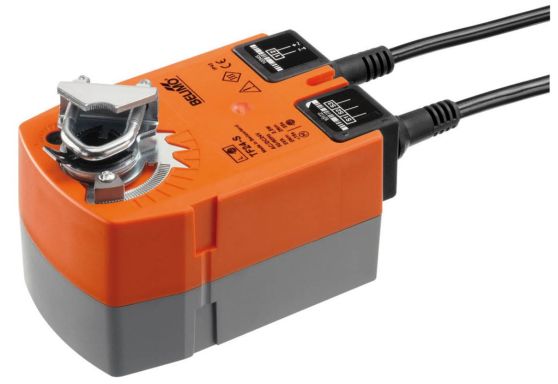

Belimo - damper actuator TF24-S- fail-safeactuator - 2,5Nm
AVAILABLE
Processing time
~ 5 Arbeitstage
(valid for DE, other countries may differ)
2,5 Nm, < 75 s, 95°
AC/DC 24 V, open-close,
1 x EPUIP 42,
term spring < 25 s
control open-close mit closing contact
connection cablePVC 1 m
auxiliary switch 0...100 % adjustable
switching capacity 1 mA...3(0.5)A, AC 250 V
axle drive universal clamp
direction of rotation wählbar (right/left)
rotation limitation mechanically adjustable
| Weight | 2.00 kg |
|---|---|
| Torque | 2.5 Nm |
| Voltage | AC/DC 24 V |
| Flap Size | 0.5 m² |
| IP protection class | IP54 |
| Runtime | 75 sec |
| Series | TF |
