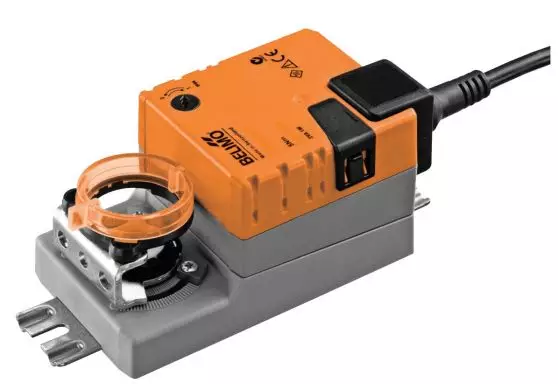

Belimo - damper actuator TMC24A-SR-F, form fit 8 x 8 mm - 2Nm
AVAILABLE
Processing time
~ 5 Arbeitstage
(valid for DE, other countries may differ)
Predecessor: LMR24-SR-F
AC / DC 24 V,
stetig,
2 Nmrunning time Motor 35 s, konstant
workspace DC 2...10 V
position feedbackDC 2...10 V
direction of rotation wählbar (right/left)
manual override mit Drucktaste
rotation limitation mechanically integrated
connection cablePVC Länge = 1 m
| Weight | 1.00 kg |
|---|---|
| Torque | 2 Nm |
| Voltage | AC/DC 24 V |
| Flap Size | 0.4 m² |
| IP protection class | IP54 |
| Runtime | 35 sec |
| Series | TMC |
| Predecessor | LMR24-SR-F |
