Belimo damper actuator LMA-040 303 005
AVAILABLE
Processing time
~ 6 workingdays
(valid for DE, other countries may differ)
Predecessor: LMC24-SR-F/500
24 V AC/DC Damper Actuator | Successor to LMC24-SR-F/500

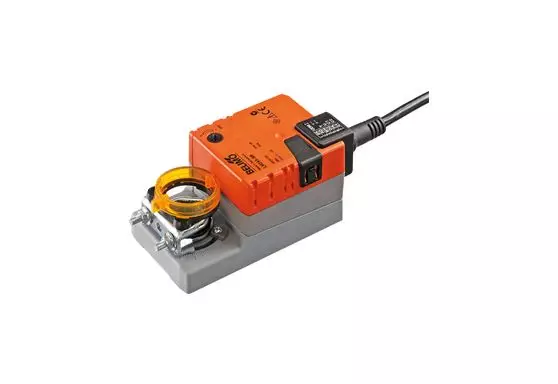

LM24AX-SR-F
BELIMO damper actuator with
mechanical position indicator and
manual override (temporary, permanent)
Rated voltage: AC/DC 24 V
Control signal: DC 0...10 V continuous
Operating range: DC 2...10 V
Feedback: DC 2...10 V
Torque: 5 Nm
Operating time: 35 s
Rotation angle: max. 95°
Rotation direction: selectable (left/right)
Connection: 5 m cable
Protection class: IP 54
Damper engagement: Positive lock 8 x 8 mm
This item is custom-manufactured to your specifications upon order.
Therefore, returns are not accepted.
LM24AX-SR-F
BELIMO damper actuator with
mechanical position indicator and
manual override (temporary, permanent)
Rated voltage: AC/DC 24 V
Control signal: DC 0...10 V continuous
Operating range: DC 2...10 V
Feedback: DC 2...10 V
Torque: 5 Nm
Operating time: 35 s
Rotation angle: max. 95°
Rotation direction: selectable (left/right)
Connection: 5 m cable
Protection class: IP 54
Damper engagement: Positive lock 8 x 8 mm
This item is custom-manufactured to your specifications upon order.
Therefore, returns are not accepted.
| Hersteller-Artikel-Nummer | LMA-040 303 005 |
|---|---|
| Weight | 2.00 kg |
| IP protection class | IP54 |
| Series | LM |
| Predecessor | LMC24-SR-F/500 |
