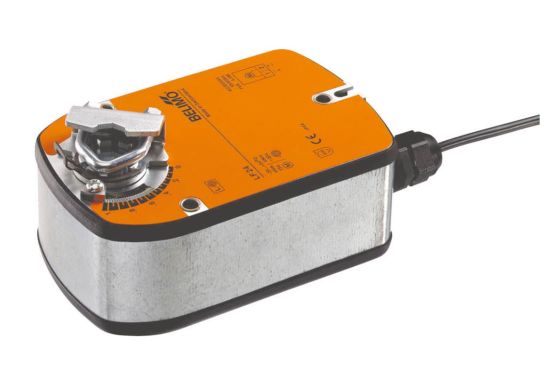

Belimo damper actuator- LF24-3 - 24V, 4Nm

Fail-safe damper actuator Current reduction in rest position Constant, load-independent running time Mechanical angle of rotation limiter and position indication Torque motor 4 Nm Nominal voltage AC/DC 24 V Nominal voltage frequency 50/60 Hz Power consumption in operation 2 W Power consumption in rest position 0.8 W Power consumption for wire sizing 3.5 VA Control 3-point Running time motor 150 s / 90° Running time fail-safe <20 s Direction of motion motor selectable with switch L/R Angle of rotation Max. 95° Manual override No Mechanical interface Universal shaft clamp 8...16 mm Electrical connection Cable 1 m PVC Degree of protection IEC/EN IP54 Protection class IEC/EN III, Safety Extra-Low Voltage (SELV) Manufacturer Belimo Type LF24-3
