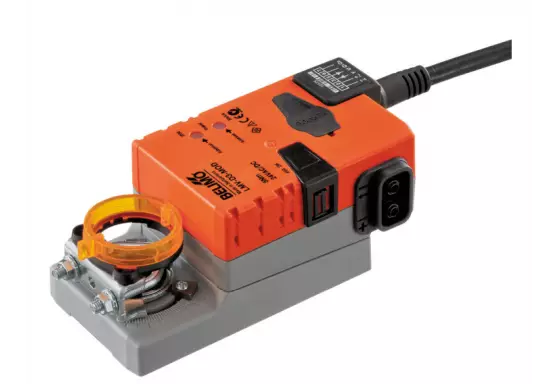

Belimo VAV actuator .- LMV-D3-MOD

VAV-Compact device – with VAV controller, dynamic Δp sensor and damper actuator Conversion of sensor signals Current reduction in rest position Constant, load-independent running time Mechanical angle of rotation limiter and position indication Torque motor 5 Nm Nominal voltage AC/DC 24 V Nominal voltage frequency 50/60 Hz Control communicative, hybrid, modulating Communication BACnet MS/TP, Modbus RTU, MP-Bus Operating range 2...10 V Feedback volume/position/diff. pressure 2...10 V Angle of rotation 95° Manual override with push-button, can be locked Mechanical interface Universal shaft clamp 6...20 mm Electrical connection Cable 1 m PVC Degree of protection IEC/EN IP54 Protection class IEC/EN III, Protective Extra-Low Voltage (PELV) Manufacturer Belimo Type LMV-D3-MOD
