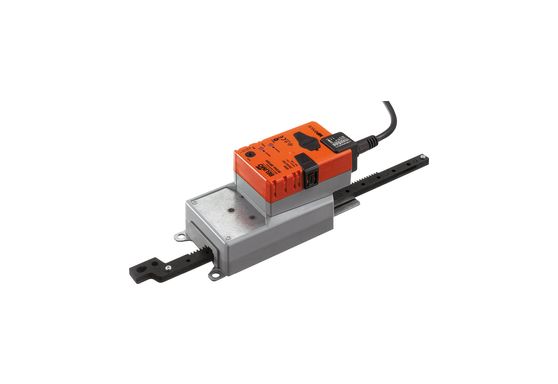

Belimo linear actuator - SH24A-MOD200

Communicative linear actuator Conversion of sensor signals Current reduction in rest position Constant, load-independent running time Adaptable setting range Actuating force motor 450 N Nominal voltage AC/DC 24 V Nominal voltage frequency 50/60 Hz Power consumption in operation 3.5 W Power consumption in rest position 1.4 W Power consumption for wire sizing 6 VA Control modulating, communicative, hybrid Communication BACnet MS/TP, Modbus RTU, MP-Bus Running time motor 150 s / 100 mm Length of stroke Max. 200 mm, adjustable in 20 mm increments Direction of motion motor selectable with switch Manual override with push-button, can be locked Electrical connection Cable 1 m PVC Degree of protection IEC/EN IP54 Protection class IEC/EN III, Safety Extra-Low Voltage (SELV) Manufacturer Belimo Type SH24A-MOD200
