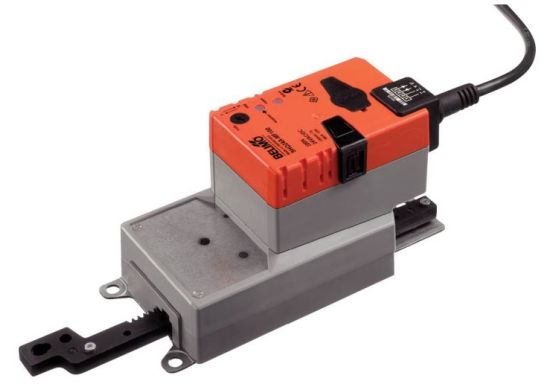

Belimo super fast actuator - SHQ24A-MF100

Configurable linear actuator Current reduction in rest position Constant, load-independent running time Adaptable setting range Actuating force motor 200 N Nominal voltage AC/DC 24 V Nominal voltage frequency 50/60 Hz Power consumption in operation 13 W Power consumption in rest position 2 W Power consumption for wire sizing 23 VA Control modulating ConfigurableShort MFT Running time motor 7 s / 100 mm Operating range 2...10 V variable Position feedback 2...10 V variable Length of stroke Max. 100 mm, adjustable in 20 mm increments Direction of motion motor selectable with switch Manual override with push-button, can be locked Electrical connection Cable 1 m PVC Degree of protection IEC/EN IP54 Protection class IEC/EN III, Safety Extra-Low Voltage (SELV) Manufacturer Belimo Type SHQ24A-MF100
