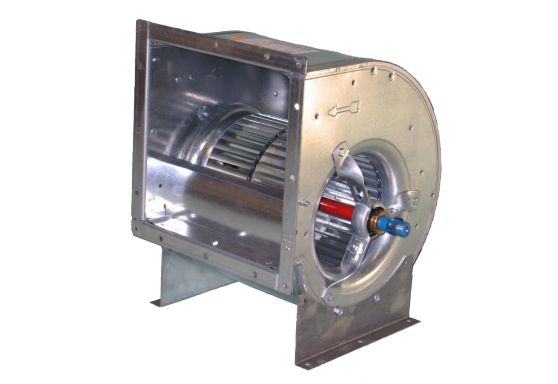

Comefri fan, Typ: TLZ 630 A

High-Performance Double Suctioner Radialfan

Introducing the cutting-edge Comefri fan, Typ: TLZ 630 A, crafted by the renowned manufacturer Comefri. This innovative fan is designed to deliver exceptional performance and efficiency, making it an ideal choice for various applications.

Advanced Features and Specifications

The Comefri fan features a double suctioner Radialfan with an impressive impeller diameter of 630 mm. The forward-curved impeller blades ensure optimal airflow and enhanced efficiency. The fan is equipped with a blow-out frame that is mounted for stability, with feet delivered loose for easy installation. The blow-out dimension measures 801 x 801 mm, and the diameter of the shaft is 40 mm.

The Ventilator-Typ is TLZ, with the predecessor being TLZ 630 W. The fan comes in a standard version and is not EX geschützt (explosion-proof).

Enhanced Performance and Reliability

The Comefri fan, Typ: TLZ 630 A, excels in providing powerful ventilation solutions while maintaining reliability and durability. The forward-curved impeller design ensures efficient airflow, making it suitable for a wide range of industrial and commercial applications.

Technical Data

• Impeller Diameter: 630 mm
• Blow-out Frame: Mounted
• Feet: Delivered Loose
• Blow-out Dimension: 801 x 801 mm
• Diameter of Shaft: 40 mm
• Ventilator-Typ: TLZ
• Predecessor: TLZ 630 W

Technical Specifications (Current)

• Manufacturer: Comefri
• Impeller Diameter: 630 mm
• Blow-out Dimension: 801 x 801 mm
• Diameter of Shaft: 40 mm
• Ventilator-Typ: TLZ
