Ziehl-Abegg, Sensor control module - CPG-6000AV UNIcon

Introduction

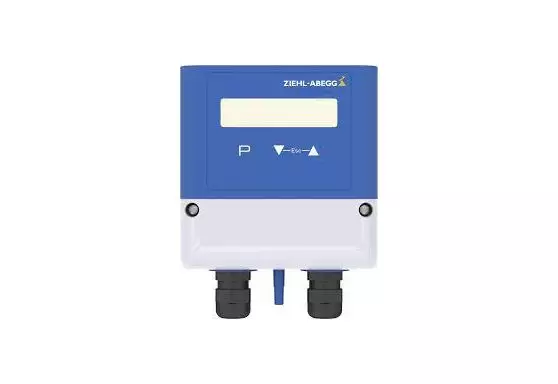

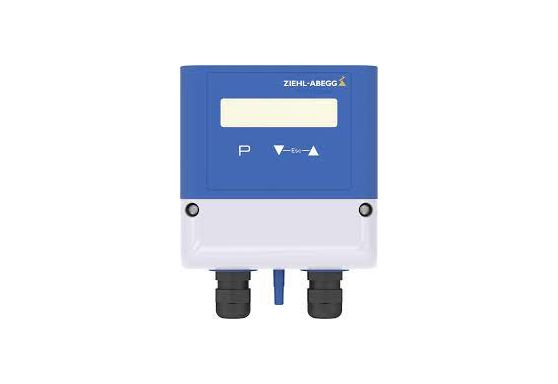

The Ziehl-Abegg Sensor Control Module - CPG-6000AV UNIcon is a cutting-edge solution designed to enhance the functionality and efficiency of ventilation systems. This innovative module serves as a key component in optimizing pressure differentials and air volume control, ensuring precise and reliable performance.

Key Features and Benefits

- Integrated Display: Easily monitor and program pressure or air volume with the integrated display, which allows for seamless switching between SI and Imperial units. - Simple Operation: The module offers intuitive operation modes, enabling use as a pressure or air volume sensor, as well as a regulator. - Easy Programming: Adjust settings effortlessly through the three buttons under the cover, including selecting measurement ranges and inputting target values. - Versatile Measurement Ranges: Choose from various measurement ranges depending on the model, such as 0-2000 / 3000 / 4000 / 6000 Pa for the CPG-6000AV version. - Flexible Voltage Input: Accommodate different settings with the voltage input for switching between setpoints 1 and 2. - Analog Output: Control EC fans, frequency converters, or other devices using the analog output, ensuring seamless integration and operation. - Robust Design: With an IP54 protection rating, the module is engineered to withstand challenging environments, providing durability and reliability. - Wide Voltage Range: Operate the module within a flexible voltage supply range of 10 to 24 V DC (+20%).

Application and Functionality

The Sensor Control Module connects to ventilation systems via two pressure ports (+ and -), where it measures the pressure differential using a silicon membrane and a measuring spring. By comparing the setpoint with the actual reading, the module delivers a precise 0-10 V output signal for controlling EC fans, frequency converters, and other equipment. This versatile module can function as a pressure sensor, displaying pressure and generating a proportional 0-10 V output signal, or as an air volume sensor, showing air volume and providing a corresponding output signal based on the set measurement range. Additionally, it can operate as a regulator for pressure or air volume, adjusting the output signal based on the comparison between the setpoint and the measured value. For up-to-date technical specifications and detailed product information, refer to reputable sources such as the manufacturer's website or official dealers.
