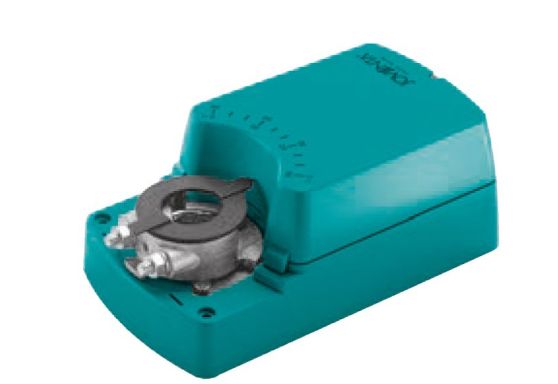

Frakta, Joventa damper actuator - DAN1N - 4 Nm, 24V

Introducing the Frakta Joventa Damper Actuator

The Frakta Joventa Damper Actuator - DAN1N, with a powerful 4 Nm torque and operating at 24V voltage, is a top-of-the-line solution specifically designed by Frakta. This versatile actuator combines precision engineering with innovative design to meet the unique demands of smaller and medium-sized air dampers and ventilation devices.

Exceptional Design and Adaptability

The Joventa® Silence series from Frakta features a compact and thoughtful construction, allowing it to be effortlessly installed even in confined spaces. Its universal adapter caters to various axle sizes, accommodating round axes ranging from 6 to 16mm in diameter and square axes of 8, 10, 11, and 12mm. With a minimum axle length of 45mm, this actuator provides seamless integration with a wide range of ventilation equipment.

Technical Specifications

The Frakta Joventa Damper Actuator is equipped with a user-friendly 2 and 3-point control for enhanced operational efficiency. Operating at AC/DC 24V voltage and featuring an IP42 protection class ensures reliable performance and durability in various environments. Its 4 Nm torque capability makes it suitable for controlling air volume flow and regulating ventilation systems with precision.
