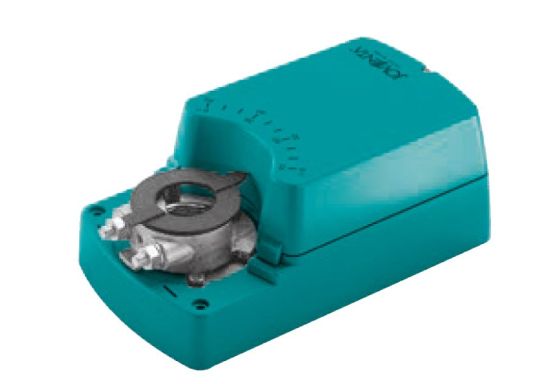

Frakta, Joventa damper actuator - DMS1.1 - 8 Nm, 24V

Introducing the Frakta Joventa Damper Actuator - DMS1.1 - 8 Nm, 24V

Overview

The Frakta Joventa Damper Actuator is a versatile and reliable solution for controlling medium to large air dampers. Designed for efficiency and performance, this actuator offers continuous and precise operation, making it ideal for a wide range of applications.

Key Features

• Manufacturer: Frakta
• Hersteller-Artikel-Nummer: DMS1.1
• Ansteuerung: Continuous
• Drehmoment: 8 Nm
• Voltage: AC/DC 24V
• IP-Schutzart: IP42
• Adapter: Universal for round and square axes

Benefits

By choosing the Frakta Joventa Damper Actuator, you can enjoy the following benefits:

• Reliable and precise control of air dampers
• Universal adapter for easy installation
• Efficient operation with a voltage of 24V
• Durable design with IP42 protection

Technical Specifications

• Model: Joventa Damper Actuator - DMS1.1
• Input Voltage: AC/DC 24V
• Control Signal: 0-10V, 0-20mA
• Duty Cycle: Continuous
• Drehmoment: 8 Nm
• Compatibility: Round axes 10-20mm Ø, Square axes 10-16mm SW

For the most up-to-date technical data concerning the Frakta Joventa Damper Actuator - DMS1.1 - 8 Nm, 24V, please refer to the manufacturer's official website or data sheet to ensure accurate and reliable information.
