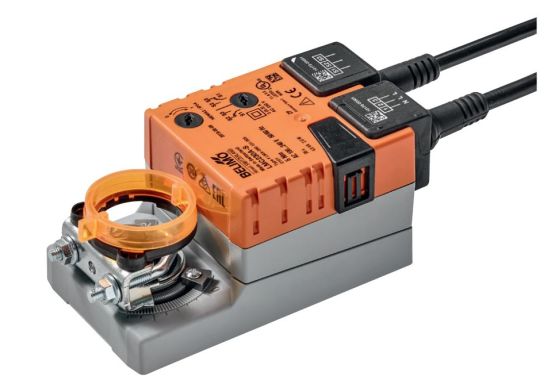

Belimo damper actuator - LMC230A-S - 230V, 5Nm

Damper actuator Current reduction in rest position Constant, load-independent running time Mechanical angle of rotation limiter and position indication Torque motor 5 Nm Nominal voltage AC 100...240 V Nominal voltage frequency 50/60 Hz Power consumption in operation 2 W Power consumption in rest position 0.5 W Power consumption for wire sizing 4 VA Control Open/close, 3-point Auxiliary switch 1x SPDT Auxiliary switch note 0...100% Running time motor 35 s / 90° Direction of motion motor selectable with switch 0 (ccw rotation) / 1 (cw rotation) Angle of rotation Max. 95° Manual override with push-button, can be locked Mechanical interface Universal shaft clamp 6...20 mm Electrical connection Cable 1 m PVC Degree of protection IEC/EN IP54 Protection class IEC/EN II, reinforced insulation Manufacturer Belimo Type LMC230A-S
