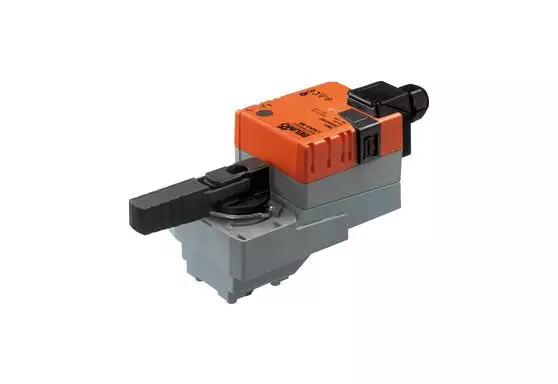

Belimo actuator - LR230A-TP - 230V, 4Nm

Electronic rotary actuator for ball valves Current reduction in rest position Constant, load-independent running time Mechanical angle of rotation limiter and position indication Torque motor 5 Nm Nominal voltage AC 100...240 V Nominal voltage frequency 50/60 Hz Power consumption in operation 2 W Power consumption in rest position 0.5 W Power consumption for wire sizing 4 VA Control Open/close, 3-point Running time motor 90 s / 90° Manual override with push-button, can be locked Electrical connection Terminals Degree of protection IEC/EN IP54 Protection class IEC/EN II, reinforced insulation Manufacturer Belimo Type LR230A-TP
