Maico Window installation kit - FE 100/1 SG

Enhance Your Ventilation System with Maico Window Installation Kit - FE 100/1 SG

Elevate your ventilation system with the Maico Window Installation Kit - FE 100/1 SG. This kit is designed for the convenient installation of Small Room Fans of the ECA 100 ipro series in windows and thin walls, offering ease and efficiency in ventilating your space.

Key Features

• Color: Traffic white similar to RAL 9016
• Durable housing made of impact-resistant plastic

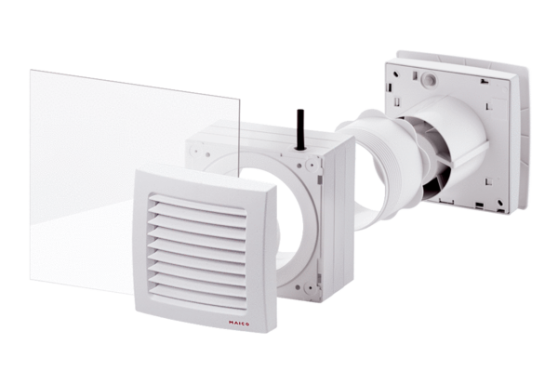

• Includes: External flap AP or external grid SG, 3 x spacer frames, 2 x sealing rings, threaded socket, 3 x screws for fan mounting, strain relief bracket with 2 x screws, cable gland, installation manual

Easy Installation Guidelines

• Simple installation in the window cutout through a screwable adapter and threaded socket
• Glass thickness of at least 3 mm, glass distance up to 75 mm
• Glass cutout of 115 to 120 mm
• Not suitable for installation in hinged double windows

Electrical Connection

Connect to the terminal block in the housing of the ECA 100 ipro for a smooth electrical setup.

Additional Information

Ensure optimal ventilation with the FE 100/1 SG Window Installation Kit, specifically designed to enhance the performance of ECA 100 ipro series fans. With its convenient features and easy installation process, this kit is the perfect solution for your ventilation needs.
