S+S Surface contact / tube contact tempe­rature sensor - ALTF02 LM235Z

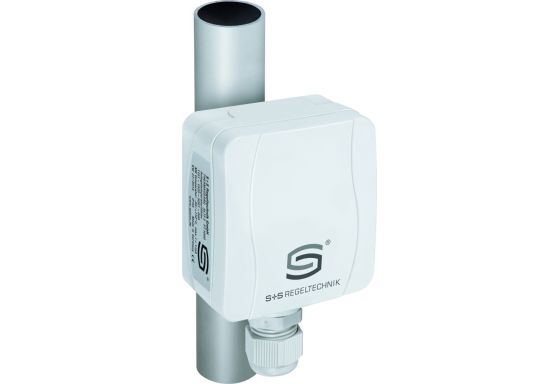

Introducing the S+S Surface Contact / Tube Contact Temperature Sensor

The S+S Surface Contact / Tube Contact Temperature Sensor - ALTF02 LM235Z from S+S Regeltechnik GmbH is a cost-effective pipe surface resistance thermometer with a passive output. Encased in a durable plastic housing with a snap-on cover, it includes a tension band for secure installation. These sensors are designed for measuring surface temperatures of solid objects and feature at least one contact surface to be placed in direct contact with the surface being measured.

Technical Specifications

• Sensor: LM235Z
• Measuring Range: -30°C to +110°C
• Permissible Air Humidity: < 95% RH, non-condensing air
• Housing: UV-resistant plastic, material polyamide, 30% glass bead reinforced, color traffic white (similar to RAL 9016), with snap-on cover
• Dimensions Housing: 72 x 64 x 37.8 mm (Type 01)
• Cable Gland: M16 x 1.5; with strain relief, interchangeable, max. inner diameter 10.4 mm
• Process Connection: Endless tension band with metal lock (included in delivery)
• Protection Class: IP 54 (according to EN 60 529) housing tested, TÜV SÜD, Report No. 713160960A (Type 01)
• EAN: 4251325600086

Benefits of the S+S Temperature Sensor

The S+S Surface Contact / Tube Contact Temperature Sensor offers customers a reliable and cost-effective solution for temperature monitoring in various applications. With its durable construction and easy installation, this sensor ensures accurate temperature readings for efficient system control.

Current Technical Data

For the most up-to-date technical data on the S+S Surface Contact / Tube Contact Temperature Sensor - ALTF02 LM235Z, please refer to reputable sources such as the manufacturer's website, product datasheets, or official dealers.
