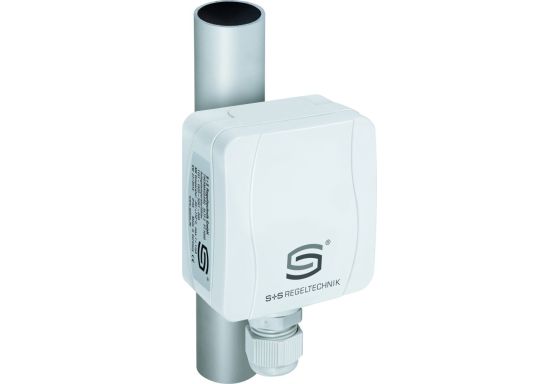

S+S Surface contact / tube contact tempe­rature sensor - ALTF02 NiTK

S+S Surface Contact / Tube Contact Temperature Sensor - ALTF02 NiTK Overview

Discover the innovative S+S Surface Contact / Tube Contact Temperature Sensor - ALTF02 NiTK from S+S Regeltechnik GmbH. This cost-effective tube resistance thermometer features a passive output, housed in a durable plastic casing with a snap-on cover and includes a tension strap for easy installation.

Key Features and Benefits

- Efficient Temperature Measurement: The Anlegefühler design facilitates the measurement of surface temperatures of solid bodies, providing accurate readings to monitor the temperature of the flowing medium within pipes.
- Robust Construction: Built with UV-resistant Polyamide material, the sensor ensures durability and reliable performance across various environments.
- Easy Installation: The sensor comes with a snap-on cover and tension strap for convenient mounting on pipes, ensuring a hassle-free setup.
- Wide Temperature Range: With a temperature range of -30°C to +110°C, the sensor offers versatility for different temperature monitoring applications.
- Weatherproof Design: With an IP54 rating, the sensor is resistant to dust and water, making it suitable for both indoor and outdoor use.

Technical Specifications

- Sensor: Ni1000Tk5000 (TCR=5000ppm/K)
- Measurement Range: -30°C to +110°C
- Allowed Air Humidity: < 95% RH (non-condensing)
- Housing: UV-resistant Polyamide material
- Dimensions: 72 x 64 x 37.8 mm
- Cable Gland: M 16 x 1.5
- Process Connection: Strap with metal lock included
- Protection Rating: IP 54 (according to EN 60529)

Current Technical Data

For the latest technical data on the S+S Surface Contact / Tube Contact Temperature Sensor - ALTF02 NiTK, refer to the official S+S Regeltechnik GmbH website or verified dealers for accurate and detailed specifications.
