S+S Surface contact / tube contact tempe­rature sensor - ALTF02 NTC1,8K

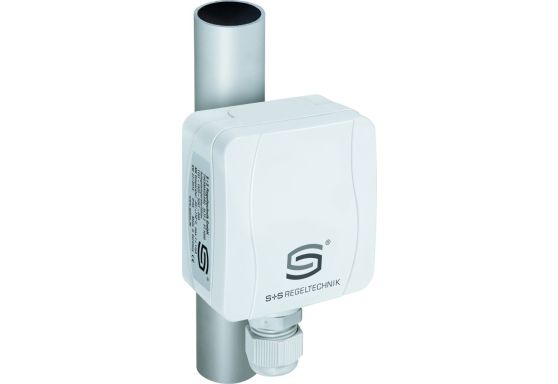

About the S+S Surface Contact / Tube Contact Temperature Sensor ALTF02 NTC1.8K

The S+S Surface Contact / Tube Contact Temperature Sensor ALTF02 NTC1.8K, manufactured by S+S Regeltechnik GmbH, is a cost-effective tube surface resistance thermometer designed for measuring surface temperatures of solid bodies with at least one contact area in direct contact with the surface to be measured. Ideal for temperature sensing on pipes, tubing (such as cold and hot water systems), or heating circuits for precise temperature regulation, this sensor provides accurate readings to monitor the temperature of the flowing medium inside the pipe.

Key Features and Benefits

- Sensor Type: NTC 1.8k Ohm - Measurement Range: -30 to +110 °C - Humidity Tolerance: Below 95% RH, non-condensing air - Durable Housing: UV-resistant plastic made of 30% glass ball reinforced polyamide in traffic white color - Secure Design: Snap-on cover and metal lockable band for easy installation and protection - Dimensions: 72 x 64 x 37.8 mm (Type 01) - Cable Gland: M16 x 1.5 with strain relief, replaceable, maximum inner diameter of 10.4 mm - Process Connection: Endless metal lockable band included - Protection Rating: IP54 compliant with EN 60 529 standards

Technical Specifications

- Verification: TÜV SÜD tested housing, Report No. 713160960A (Type 01) - EAN: 4251325600055 - Manufacturer Part Number: 1101-1011-2001-000 For the most current technical data on the S+S Surface Contact / Tube Contact Temperature Sensor ALTF02 NTC1.8K, please refer to the manufacturer's official website or product datasheet, ensuring accurate and reliable information for your specific requirements.
