S+S Surface contact / tube contact tempe­rature sensor - ALTF02 NTC20K

S+S Surface Contact / Tube Contact Temperature Sensor - ALTF02 NTC20K

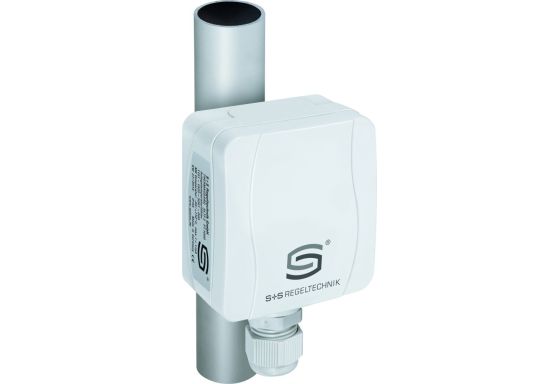

The S+S Surface Contact / Tube Contact Temperature Sensor - ALTF02 NTC20K is a cost-effective pipe surface resistance thermometer designed to accurately measure surface temperatures of solid objects. This sensor comes with a passive output, housed in a durable plastic casing with a snap-on cover and includes a tension strap for easy installation.

Key Features and Benefits

- Efficient Temperature Measurement: The sensor is ideal for measuring the temperature of the fluid flowing within pipes, such as water temperature in heating systems. - Robust Construction: The sensor features a UV-resistant plastic casing made of Polyamide with 30% glass bead reinforcement, ensuring durability. - Easy Installation: The sensor comes with a snap-on cover and a tension strap with a metal lock for secure and convenient mounting. - Reliable Performance: With a NTC20kOhm sensor and a temperature range of -30 to +110 °C, this sensor provides accurate and reliable temperature readings. - Weatherproof Design: The sensor is IP 54 rated, making it suitable for outdoor applications and ensuring protection against dust and water ingress.

Technical Specifications

- Sensor Type: NTC20kOhm - Measurement Range: -30 to +110 °C - Humidity: < 95% RH, non-condensing air - Housing Material: UV-resistant Polyamide with 30% glass bead reinforcement - Housing Dimensions: 72 x 64 x 37.8 mm - Cable Gland: M 16 x 1.5, with strain relief, replaceable - Process Connection: Endless tension strap with metal lock - Protection Rating: IP 54 - EAN: 4251325600079 For more detailed technical data on the S+S Surface Contact / Tube Contact Temperature Sensor - ALTF02 NTC20K, please refer to the official manufacturer's website or data sheet.
