S+S Surface contact / tube contact tempe­rature sensor - ALTF2 LM235Z

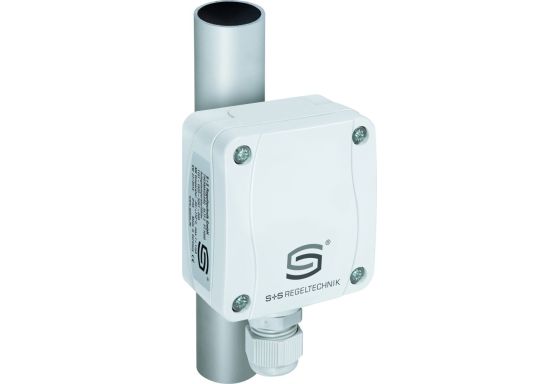

S+S Surface Contact / Tube Contact Temperature Sensor

Introducing the cutting-edge S+S Surface Contact / Tube Contact Temperature Sensor - ALTF2 LM235Z from the renowned manufacturer S+S Regeltechnik GmbH. This state-of-the-art sensor is designed to provide accurate and reliable temperature measurements in various industrial applications.

Key Features

• Passive output
• Durable plastic housing with quick-release screws
• Includes tension band for secure installation
• Designed for measuring surface temperatures of solid objects
• Ideal for monitoring temperature of flowing mediums in pipes
• Suitable for temperature detection in pipelines, tubes, and heating systems

Technical Specifications

• Sensor: LM235Z
• Measurement range: -30 to +110 °C
• Material: UV-resistant plastic housing made of polyamide
• Quick-release screws for easy installation
• Color: Traffic white (similar to RAL 9016)
• Dimensions: 72 x 64 x 37.8 mm (Type 1)
• Cable gland: M 16 x 1.5; with strain relief
• Process connection: Continuous tension band with metal lock
• Protection class: IP 65

Advantages for Customers

The S+S Surface Contact / Tube Contact Temperature Sensor provides customers with a reliable solution for monitoring surface temperatures of solid objects and flowing mediums. Its durable construction and easy installation make it a practical choice for various industrial applications. With accurate temperature measurements and a passive output, customers can trust this sensor for precise monitoring and control of their systems.
