S+S Surface contact / tube contact tempe­rature sensor - ALTF2 Ni1000

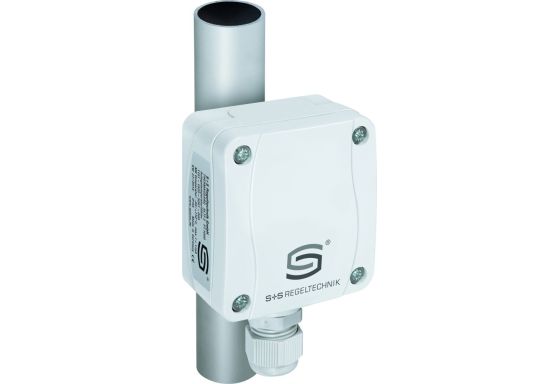

S+S Surface Contact / Tube Contact Temperature Sensor - ALTF2 Ni1000

Introducing the S+S Surface Contact / Tube Contact Temperature Sensor, model ALTF2 Ni1000 from S+S Regeltechnik GmbH. This sensor is designed for measuring surface temperatures of solid objects and monitoring the temperature of flowing mediums within pipes. It is a reliable and efficient solution for temperature sensing in various industrial applications.

Key Features and Specifications

• Sensor Type: Ni1000, DIN EN 43760, Class B
• Measurement Range: -30°C to +110°C
• Material: UV-resistant Polyamide plastic housing with 30% glass bead reinforcement
• Inclusive of Quick-Release Screws and Metal Lock Strap
• Dimensions: 72 x 64 x 37.8 mm
• Cable Gland: M16 x 1.5, with strain relief, replaceable, max. inner diameter of 10.4 mm
• Protection Class: IP 65, TÜV SÜD Certified

Advantages of ALTF2 Ni1000

The ALTF2 Ni1000 offers precise and reliable temperature measurement capabilities for a wide range of applications. Its durable construction, including a UV-resistant housing and quick-release screws, ensures longevity and ease of installation. The sensor's passive output design simplifies integration and maintenance, making it a cost-effective temperature monitoring solution.

Technical Data

For the latest technical specifications and details on the S+S Surface Contact / Tube Contact Temperature Sensor - ALTF2 Ni1000, please refer to the official manufacturer's website or product datasheet for accurate and up-to-date information.
