S+S Surface Contact/Tube Contact Temperature Sensor: ALTF2 NiTK

Discover the versatile and reliable S+S Surface Contact/Tube Contact Temperature Sensor, the ALTF2 NiTK model, manufactured by S+S Regeltechnik GmbH. This sensor is designed to provide accurate temperature measurements for a wide range of applications.

Overview

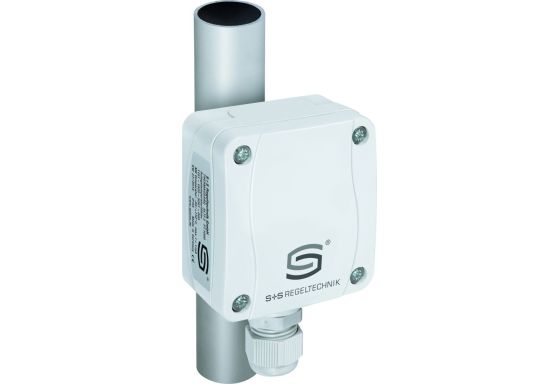

The THERMASGARD® ALTF 2 is a tube-mounted resistance thermometer designed with a passive output, housed in a durable plastic casing with quick-release screws and includes a tension band. The sensor is specifically crafted for measuring surface temperatures of solid objects and features a contact surface for direct contact with the surface being measured.

Technical Specifications

• Sensor: Ni1000Tk5000 (TCR=5000ppm/K)
• Measurement Range: -30 to +110 °C
• Dimensions: 72 x 64 x 37.8 mm (Type 1)
• Housing: UV-resistant plastic, material: Polyamide, 30% glass bead reinforced, with quick-release screws (slotted/cross-slotted combination)
• Protection Class: IP 65 (according to EN 60 529) housing tested by TÜV SÜD
• Included: Metal locking tension band with the product
• EAN: 4251325600130

Advantages

Enjoy the benefits of precise temperature monitoring with the ALTF2 NiTK sensor. Its robust construction, reliable performance, and easy installation make it an ideal choice for temperature sensing in various industrial and commercial settings.

Application

The tube contact sensor is used for temperature measurement on pipes, tubes (e.g., hot and cold water), or heating systems for efficient temperature control. With its passive output and durable design, the ALTF2 NiTK ensures accurate and consistent temperature readings for effective system operation.

Technical Data

For the most up-to-date technical specifications and data for the S+S Surface Contact/Tube Contact Temperature Sensor - ALTF2 NiTK, please refer to the manufacturer's website or official product datasheet for detailed information.
