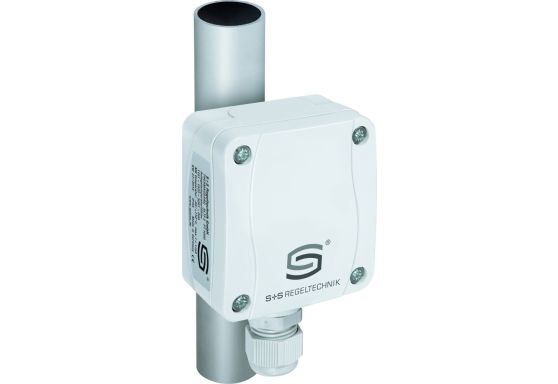

S+S Surface contact / tube contact tempe­rature sensor - ALTF2 NTC10K

Introducing the S+S Surface Contact / Tube Contact Temperature Sensor - ALTF2 NTC10K

Discover the precision and reliability of the S+S Surface Contact / Tube Contact Temperature Sensor - ALTF2 NTC10K, designed by the renowned manufacturer S+S Regeltechnik GmbH. This innovative thermometer is a robust solution for measuring surface temperatures of solid objects, providing accurate data for efficient temperature control systems.

Key Features and Benefits

• Passive output system for seamless integration
• Durable construction in a shock-resistant plastic housing with quick-release screws
• Includes a tensioning strap for easy installation
• Ideal for monitoring temperatures of flowing media in pipes
• Ensures precise temperature readings for effective heating system regulation
• Guarantees reliability and longevity in temperature monitoring applications

Technical Specifications

• Sensor: NTC10kOhm
• Measurement Range: -30 to +110 °C
• Maximum Air Humidity: < 95% RH, non-condensing air
• Housing Material: UV-resistant plastic, Polyamide with 30% glass bead reinforcement
• Quick-release screws (slotted/cross-head combination) for easy access
• Dimensions: 72 x 64 x 37.8 mm (Type 1)
• Cable Gland: M16 x 1.5 with strain relief, replaceable, max. inner diameter 10.4 mm
• Process Connection: Endless tension strap with metal lock included
• Protection Rating: IP65 certified housing (per EN 60 529), TÜV SÜD approved

Enhance Your Environment with the S+S ALTF2 NTC10K

Upgrade your temperature monitoring systems with the THERMASGARD® ALTF2. Its innovative design and reliable performance make it the ideal choice for precise temperature measurement in various applications. Ensure optimal efficiency and control in your heating systems with the advanced features of this superior temperature sensor.
