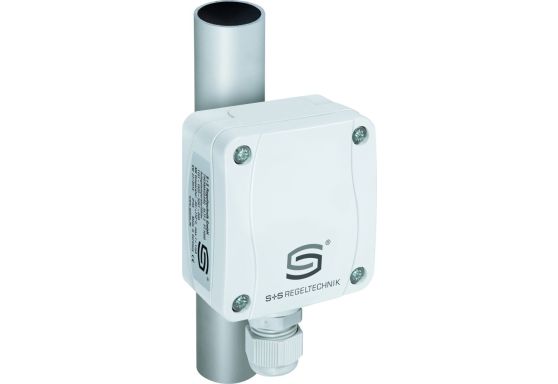

S+S Surface contact / tube contact tempe­rature sensor - ALTF2 Pt100

Introduction

Discover the innovative S+S Surface Contact/Tube Contact Temperature Sensor - ALTF2 Pt100 from S+S Regeltechnik GmbH, designed to revolutionize surface temperature measurement applications.

Advantages and Benefits

Unleash the potential of the THERMASGARD® ALTF 2, a pipe-attached resistance thermometer featuring a passive output, housed in a robust plastic casing with quick-release screws and inclusive tension band. The unique design allows for efficient and accurate temperature monitoring of solid surfaces, facilitating precise control of fluid temperatures within pipes.

Technical Features

Equipped with a Pt100 sensor complying with DIN EN 60751 standards, Class B, the sensor offers a temperature measurement range of -30°C to +110°C. The plastic housing, crafted from UV-resistant polyamide with 30% glass bead reinforcement, ensures durability. An IP 65 protection rating guarantees reliable performance in diverse environments.

The compact housing dimensions of 72 x 64 x 37.8 mm (Type 1) and interchangeable M 16 x 1.5 cable gland with strain relief enable effortless installation. The process connection features a continuous tension band with a metal lock, providing secure attachment.

Current Technical Data

For the latest technical specifications and details on the S+S Surface Contact/Tube Contact Temperature Sensor - ALTF2 Pt100, explore reputable sources such as the manufacturer's website, official data sheets, or authorized dealers for comprehensive information.
