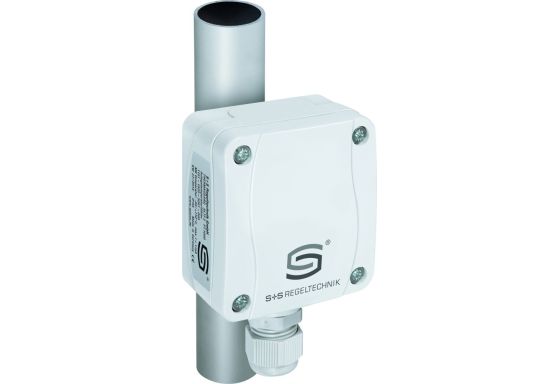

S+S Surface contact / tube contact tempe­rature sensor - ALTF2 Pt1000

Introducing the S+S Surface/Tube Contact Temperature Sensor - ALTF2 Pt1000

Experience precise temperature measurements with the THERMASGARD® ALTF 2, a tube contact resistance thermometer designed by S+S Regeltechnik GmbH. This sensor is engineered to deliver accurate readings for surface temperatures of solid objects, ensuring efficient monitoring for various applications.

Key Features

• Sensor Type: Pt1000, DIN EN 60751, Class B
• Measurement Range: -30°C to +110°C
• Humidity Level: < 95% RH (non-condensing air)
• Material: UV-resistant polyamide with 30% glass ball reinforcement
• Quick-release screws for easy installation

Specifications

• Dimensions: 72 x 64 x 37.8 mm
• Cable Gland: M16 x 1.5 with strain relief, replaceable
• Process Connection: Endless tension band with metal lock
• Protection Class: IP65 (based on EN 60 529 standards)
• TÜV SÜD Certified

Benefits for Customers

The ALTF2 Pt1000 sensor provides a reliable solution for temperature monitoring in pipelines, water systems, and heating applications. Its robust construction ensures durability and accuracy, with easy installation and maintenance for seamless operation.

Technical Data

For the most up-to-date technical details and specifications of the S+S ALTF2 Pt1000 sensor, refer to the official manufacturer's website or product datasheet for comprehensive information.
