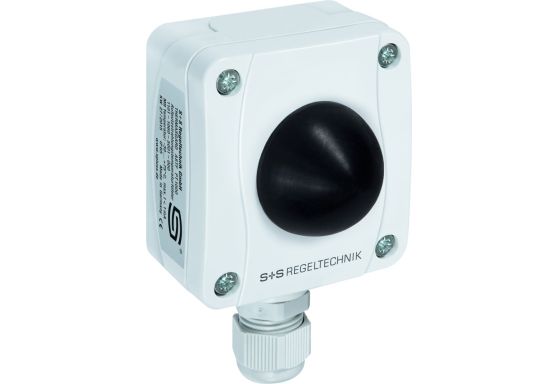

S+S On-wall radiation tempe­rature sensor - ASTF LM235Z

The S+S On-wall radiation temperature sensor - ASTF LM235Z from S+S Regeltechnik GmbH offers advanced temperature sensing capabilities for various applications. Designed to accurately measure radiation levels in moist environments or large spaces, this sensor excels in capturing effective radiation heat at the measurement location.

Key Features:

• Sensor Type: LM235Z
• Measurement Range: -30 to +75 °C
• Housing: UV-resistant plastic casing made of Polyamide material with quick-release screws
• Dimensions: 72 x 64 x 37.8 (51.8) mm
• Cable Gland: M 16 x 1.5 with strain relief, interchangeable
• Process Connection: Screw-based
• Protection Rating: IP 65 (according to EN 60 529) certified
• Color: Traffic White (similar to RAL 9016)

Advantages and Benefits:

• Precise radiation heat measurement
• Robust construction for durability
• Easy installation with quick-release screws
• High level of accuracy for reliable data
• UV-resistant housing suitable for various environments

Technical Specifications:

• Manufacturer Part Number: 1101-1062-1001-000
• Passive output resistance thermometer THERMASGARD® ASTF
• Housing with terminal box made of impact-resistant plastic
• Effective measurement of radiation heat

Current Technical Data:

• Product Name: S+S On-wall Radiation Temperature Sensor - ASTF LM235Z
• Manufacturer: S+S Regeltechnik GmbH
• Product Description: Widerstandsthermometer THERMASGARD® ASTF with passive output, terminal box made of impact-resistant plastic, housing cover with quick-release screws
• EAN: 4251325600536
• TÜV SÜD certified; Report No. 713139052
