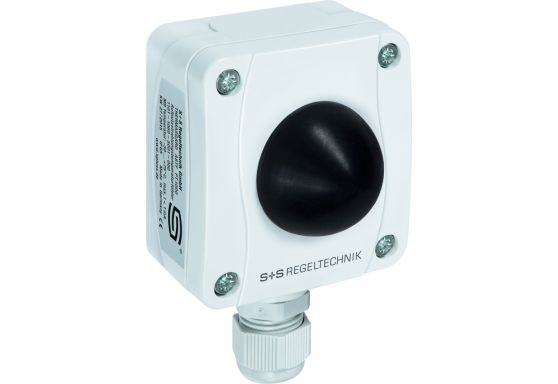

S+S On-wall Radiation Temperature Sensor - ASTF Ni1000

Discover the advanced S+S On-wall radiation temperature sensor - ASTF Ni1000 designed by S+S Regeltechnik GmbH to meet your temperature monitoring needs efficiently. This high-quality sensor is ideal for use in humid environments or large spaces and is specially crafted to accurately detect the effective radiation levels at the measuring location.

Key Features

• Type: Ni1000, DIN EN 43760, Class B
• Measurement Range: -30°C to +75°C
• Housing: UV-resistant plastic, Polyamide material with 30% glass bead reinforcement
• Quick-release screws for easy installation
• Color: Traffic white (similar to RAL 9016)
• Black half-sphere for enhanced efficiency
• Dimensions: 72 x 64 x 37.8 (51.8) mm
• Cable Gland: M 16 x 1.5; with strain relief, replaceable, max. inner diameter 10.4 mm
• Process Connection: Screw-on
• Protection Class: IP 65 (according to EN 60529)

Benefits and Advantages

The ASTF Ni1000 sensor offers precise temperature measurements in challenging environments, ensuring reliable and representative results for your space. The innovative design and robust construction of the sensor guarantee durability and long-term performance. The quick and easy installation process saves time and effort, making it a convenient solution for your temperature monitoring needs.

Technical Data

For the most up-to-date technical specifications and details of the S+S On-wall radiation temperature sensor - ASTF Ni1000, please refer to official sources such as the manufacturer's website or authorized dealers.
