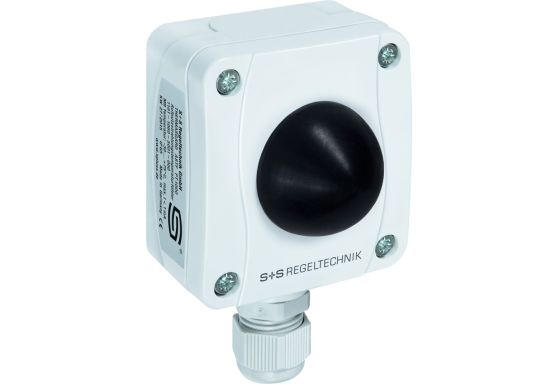

S+S On-wall radiation tempe­rature sensor - ASTF NTC10K

S+S On-wall Radiation Temperature Sensor - ASTF NTC10K Overview

The S+S On-wall Radiation Temperature Sensor - ASTF NTC10K is designed for precise temperature monitoring in humid environments or large indoor spaces. This on-wall radiation temperature sensor is tailored to measure the effective radiant heat or radiation levels present at the measurement location. By utilizing a sophisticated measurement method suitable for dark radiation sensors, this device ensures highly accurate and representative temperature readings in the measuring area.

Key Features

• Sensor Type: NTC 10kOhm
• Measuring Range: -30°C to +75°C
• Housing: UV-resistant plastic, Polyamide material with 30% glass bead reinforcement
• Quick-release housing cover screws (Slotted/cross-head combination)
• Color: Traffic white (similar to RAL 9016)
• Black half-sphere design
• Dimensions: 72 x 64 x 37.8 (51.8) mm (Type 1)
• Cable Gland: M16 x 1.5; with strain relief, replaceable, max. inner diameter 10.4 mm
• Process Connection: Screw-fastened
• Protection Rating: IP65 (according to EN 60 529) housing certified by TÜV SÜD, Report No. 713139052 (Type 1)
• EAN: 4251325600499

Technical Data

For the latest technical specifications and detailed product data, please refer to reputable sources such as the manufacturer's website, official data sheets, or authorized dealers.
