S+S On-wall radiation tempe­rature sensor - ASTF Pt100

About the S+S On-wall Radiation Temperature Sensor - ASTF Pt100

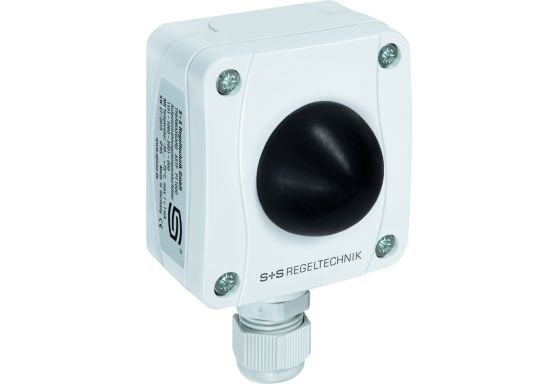

The S+S On-wall Radiation Temperature Sensor - ASTF Pt100 from S+S Regeltechnik GmbH is a high-quality resistance thermometer designed for temperature sensing in humid areas or large rooms/halls. Specifically crafted for the effective detection of radiation heat at the measurement site, this surface-mounted radiation temperature sensor ensures precise and reliable measurement results utilizing advanced measurement techniques.

Key Features and Benefits

• Sensor: Pt100, DIN EN 60751, Class B
• Measurement Range: -30...+75 °C
• Robust Housing: Made of UV-resistant polyamide with 30% glass sphere reinforcement
• Quick Release Cover Screws: Facilitate easy installation and maintenance
• Compact Design: Dimensions of 72 x 64 x 37.8 (51.8) mm (Type 1)
• IP65 Protection Rating: Ensures durability and reliability in various environmental conditions
• Easy Installation: Process connection through screws for convenience

Additional Technical Information

The S+S On-wall Radiation Temperature Sensor - ASTF Pt100 is built to meet stringent quality standards and is TÜV SÜD certified. The sensor features a Pt100 sensor element according to DIN EN 60751, Class B, ensuring accurate temperature measurement within a wide range. The housing, constructed from robust and UV-resistant polyamide material, is equipped with Schnellverschlussschrauben screws for securing the cover quickly.

The integrated black half-sphere enhances the efficiency of radiation heat detection. With M16 x 1.5 cable gland for simple and secure cable connection, this sensor offers a maximum inner diameter of 10.4 mm, enabling easy installation and maintenance. The Verkehrsweiß (RAL 9016) colored housing adds a sleek touch to its overall design while ensuring visibility.

Current Technical Data

For the most up-to-date technical specifications and detailed information regarding the S+S On-wall Radiation Temperature Sensor - ASTF Pt100, please refer to the manufacturer's official website or product datasheet.
