S+S Outside tempe­rature sensor / wet room tempe­rature sensor - ATF1 NTC1,8K

S+S Outside Temperature Sensor / Wet Room Temperature Sensor - ATF1 NTC1,8K

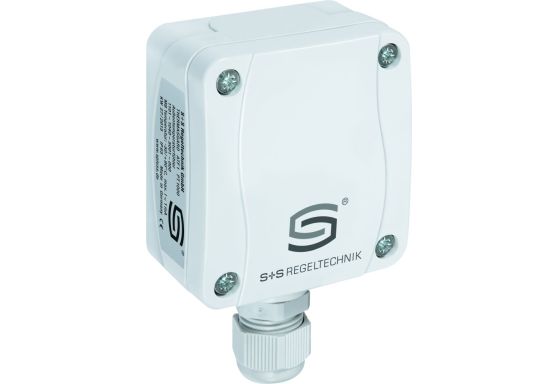

Introducing the S+S Outside Temperature Sensor / Wet Room Temperature Sensor - ATF1 NTC1,8K from S+S Regeltechnik GmbH. This external wall resistance thermometer/weather sensor, THERMASGARD® ATF 2, comes with a passive output and a robust plastic housing with quick-release screws. It is designed for capturing outdoor temperature and humidity conditions, suitable for various applications such as external sensing, weather monitoring, installation on exterior walls, in refrigeration units, greenhouses, warehouses, industrial settings, and agriculture.

Key Features

• Sensor: NTC 1.8kOhm
• Measurement Range: -50 to +90 °C
• Maximum Air Humidity: < 95% RH, non-condensing air
• Housing: UV-resistant plastic, Polyamide material with 30% glass sphere reinforcement, equipped with quick-release screws (slot/cross-slot combination), Traffic White color (similar to RAL 9016)
• Dimensions: 72 x 64 x 37.8 mm (Type 1)
• Cable Gland: M16 x 1.5; with strain relief, replaceable, maximum inner diameter 10.4 mm
• Protection Rating: IP67 (per EN 60529) Housing tested, TÜV SÜD, Report No. 713139052 (Type 1)
• EAN: 4251325600314

Advantages for Customers

The S+S Outside Temperature Sensor / Wet Room Temperature Sensor - ATF1 NTC1,8K offers accurate and reliable temperature monitoring for exterior and humid environments. Its sturdy construction ensures durability and longevity in varied weather conditions. The easy installation process with quick-release screws simplifies setup and maintenance, while the UV-resistant housing protects the sensor for long-term use.

Technical Details

Mission: Capture outdoor and humid room temperatures

Sensor Type: NTC 1.8kOhm

Measurement Range: -50 to +90 °C

Maximum Air Humidity: < 95% RH, non-condensing air

Housing Material: UV-resistant plastic, Polyamide with glass sphere reinforcement

Dimensions: 72 x 64 x 37.8 mm

Cable Gland: M16 x 1.5, with strain relief, replaceable, max. inner diameter 10.4 mm

Protection Rating: IP67 (per EN 60529)

Color: Traffic White (similar to RAL 9016)

Certifications: TÜV SÜD, EAN: 4251325600314
