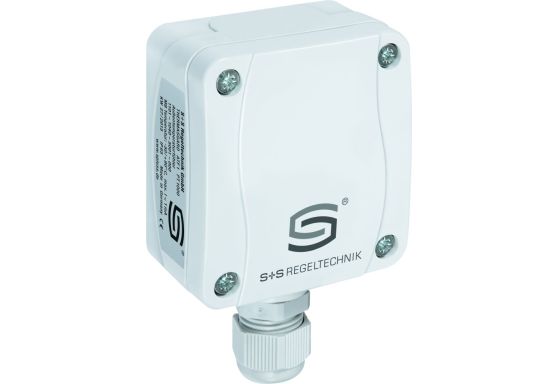

S+S Outside tempe­rature sensor / wet room tempe­rature sensor - ATF1 NTC10K

Introducing the S+S Outside Temperature Sensor / Wet Room Temperature Sensor - ATF1 NTC10K

Enhance your temperature monitoring capabilities with the S+S Outside Temperature Sensor / Wet Room Temperature Sensor - ATF1 NTC10K from S+S Regeltechnik GmbH. This versatile sensor is designed to accurately measure outdoor and indoor temperatures, making it ideal for a wide range of applications including outdoor walls, refrigeration units, greenhouses, industrial facilities, and agricultural settings.

Key Features

• Model: ATF1 NTC10K
• Manufacturer Part Number: 1101-1041-5001-000
• Passive output
• Durable plastic housing with quick-release screws
• NTC10kOhm sensor
• Temperature range: -50°C to +90°C
• Designed for outdoor and wet room temperature monitoring
• UV-resistant plastic casing made of Polyamide
• Compact dimensions: 72 x 64 x 37.8 mm (Type 1)
• IP 67 protection rating

Installation and Usage

The sensor is typically mounted outdoors on the north side or in a sheltered area to ensure accurate temperature readings. When exposed to direct sunlight, additional accessories like sun protection shields are recommended for optimal performance.

Technical Specifications

• Approved by TÜV SÜD
• Dimensions: 72 x 64 x 37.8 mm (Type 1)
• Cable gland: M 16 x 1.5 with strain relief, replaceable, max. inside diameter 10.4 mm
• Color: Traffic White (similar to RAL 9016)
• Indoor humidity: < 95% RH, non-condensing air
• Quick-release screws for easy maintenance
• Highly durable construction for long-lasting performance
