S+S Outside tempe­rature sensor / wet room tempe­rature sensor - ATF1 NTC20K

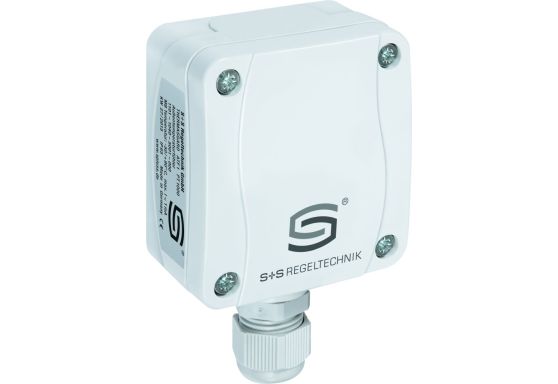

S+S Outside Temperature Sensor - ATF1 NTC20K

Experience precise temperature monitoring with the S+S Outside Temperature Sensor ATF1 NTC20K, designed for outdoor and wet room environments. This sensor from S+S Regeltechnik GmbH is engineered to measure external and wet room temperatures accurately, making it ideal for outdoor walls, refrigeration and greenhouse setups, industrial facilities, and agricultural areas.

Key Features

• NTC20kOhm sensor with a temperature range of -50 to +90 °C
• Constructed with durable and UV-resistant polyamide housing
• Quick-release screws for effortless installation
• Suitable for outdoor use with an IP 67 protection rating
• Compact design with dimensions of 72 x 64 x 37.8 mm
• Designed for easy cable connection with M16 x 1.5 cable gland

Installation and Usage

Mount the temperature sensor outdoors, preferably on the north side or a sheltered location to ensure accurate readings. For areas exposed to direct sunlight, consider using the optional sun and impact protection accessories available (WS 01, WS 04) or inquire about the model with pre-installed sun protection SS 02.

Technical Specifications

• Manufacturer Part Number: 1101-1041-6001-000
• Material: Polyamide housing with 30% glass bead reinforcement
• Color: Traffic White (similar to RAL 9016)
• Humidity Range: < 95% RH, non-condensing air
• Certifications: IP 67 Protection, TÜV SÜD tested
• EAN: 4251325600338

Additional Information

For more technical details and up-to-date information on the S+S Outside Temperature Sensor ATF1 NTC20K, refer to reputable sources such as the manufacturer's website, official data sheets, or authorized retailers. Stay informed and make an informed decision for your temperature monitoring needs.
