S+S Outside tempe­rature sensor / wet room tempe­rature sensor - ATF1 Pt1000

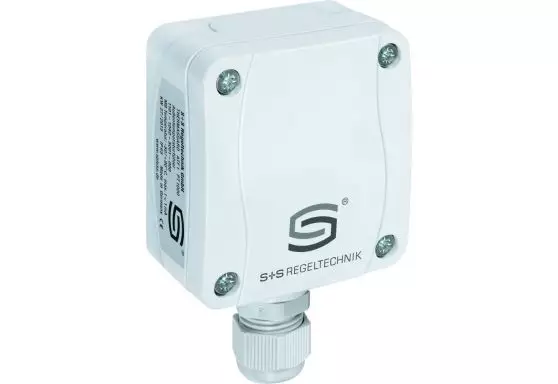

S+S Outside Temperature Sensor - ATF1 Pt1000

Enhance your temperature monitoring capabilities with the S+S Outside Temperature Sensor - ATF1 Pt1000 from S+S Regeltechnik GmbH. This versatile sensor is designed for precise measurement of outdoor and wet room temperatures in various environments, making it ideal for applications such as outdoor weather sensing, greenhouse monitoring, and industrial settings.

Key Features

• Sensor Type: Pt1000, DIN EN 60751, Class B
• Temperature Range: -50°C to +90°C
• Material: UV-resistant plastic housing made of Polyamide with quick-release screws
• Dimensions: 72 x 64 x 37.8 mm
• Cable Gland: M 16 x 1.5 with strain relief, replaceable
• Protection Rating: IP 67 (according to EN 60529)

Advantages

The S+S Outside Temperature Sensor offers a reliable and accurate solution for monitoring outdoor and wet room temperatures. Its robust construction ensures durability and longevity, while the UV-resistant housing provides protection against external elements. The sensor's wide temperature range and high humidity tolerance make it suitable for a variety of applications, from agricultural to industrial environments.

Installation Tips

For optimal performance, mount the sensor on the north side or in a sheltered location outdoors. In cases of direct sunlight exposure, consider using additional sun protection accessories such as the WS 01 or WS 04 shields (sold separately) or request the variant with the SS 02 sunshade.

Ensure proper cable management with the provided cable gland for secure and reliable connections, maintaining the sensor's functionality in varying conditions.

Technical Specifications

• Material: UV-resistant plastic housing made of Polyamide with quick-release screws
• Dimensions: 72 x 64 x 37.8 mm
• Cable Gland: M 16 x 1.5 with strain relief, replaceable
• Protection Rating: IP 67 (according to EN 60529)
• Manufacturer Part Number: 1101-1040-5001-000
• EAN: 4251325600277
• TÜV SÜD Certified (Report No. 713139052)
