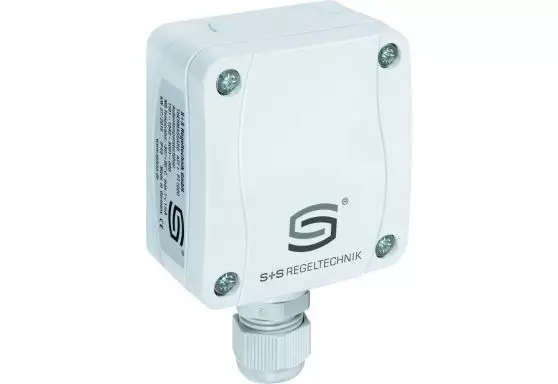

S+S Outside tempe­rature sensor / wet room tempe­rature sensor - ATF1 Pt1000A

S+S Outside Temperature Sensor Overview

The S+S Outside temperature sensor, also known as the wet room temperature sensor ATF1 Pt1000A, is a versatile device designed by S+S Regeltechnik GmbH for monitoring outdoor and wet room temperatures. It serves multiple purposes, including outdoor temperature sensing, weather monitoring, and humidity control in various environments such as outdoor walls, cooling and greenhouse facilities, industrial settings, and agricultural fields.

Main Product Attributes

• Manufacturer Part Number: 1101-1040-6003-000
• Manufacturer: S+S Regeltechnik GmbH
• Description: Outdoor resistance thermometer/weather sensor THERMASGARD® ATF 2 (external sensor) with passive output, featuring a durable plastic housing and quick-release screws
• Sensor Type: PT1000
• Measuring Range: -50 to +90 °C
• Max. Air Humidity: < 95% RH
• Housing: UV-resistant plastic, material Polyamide, 30% glass bead reinforced, with quick-release screws (slotted / cross-slot combination), Traffic White color (similar to RAL 9016)
• Dimensions: 72 x 64 x 37.8 mm (Type 1)
• Cable Gland: M 16 x 1.5; with strain relief, replaceable, max. inner diameter 10.4 mm
• Protection Class: IP 67 (according to EN 60 529) housing tested, TÜV SÜD, Report No. 713139052 (Type 1)
• EAN: 4251325600284

Advantages and Benefits

• Reliable outdoor temperature monitoring for diverse applications
• Suitable for wet room temperature control in various settings
• Durable construction with UV-resistant housing
• Easy installation with quick-release screws
• Wide measuring range from -50 to +90 °C
• IP 67 protection class ensuring device longevity and performance in harsh conditions

Technical Data

For the most current technical data on the S+S Outside temperature sensor ATF1 Pt1000A, please refer to reputable sources such as the manufacturer's website or official dealers. Ensure to check for any additional specifications or details that may impact the device's performance and functionality.
