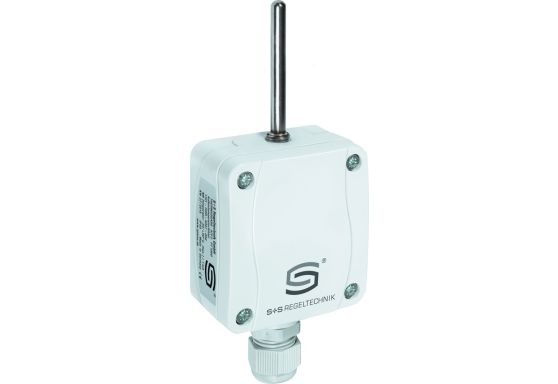

S+S Outside temperature sensor / wet room temperature sensor - ATF2 LM235Z

Enhance Your Environment Monitoring with the S+S ATF2 LM235Z Temperature Sensor

Discover a versatile solution for monitoring outdoor and wet room temperatures with the S+S ATF2 LM235Z temperature sensor. Designed by S+S Regeltechnik GmbH, this innovative device offers reliable temperature sensing capabilities for various applications.

Key Features and Benefits:

• External temperature sensor suitable for outdoor and wet room environments
• Provides accurate temperature readings in a range of -50 to +90 °C
• Constructed with durable UV-resistant polyamide material for longevity
• Includes a housing with quick-release screws for easy installation
• IP65 rated for protection against dust and water ingress
• Compatible with a range of settings such as outdoor walls, refrigeration units, greenhouses, and more

Technical Specifications:

• Sensor: LM235Z
• Ambient Temperature Range: -50 to +90 °C
• Maximum Air Humidity: < 95% RH (non-condensing)
• Housing Material: UV-resistant polyamide with 30% glass bead reinforcement
• Housing Dimensions: 72 x 64 x 37.8 mm
• Cable Gland: M 16 x 1.5 with strain relief, replaceable, max. inner diameter 10.4 mm

Installation and Usage:

The S+S ATF2 LM235Z sensor is ideal for mounting on outdoor walls or in wet room areas. It can be utilized in various sectors including industrial, agricultural, and commercial environments. For optimal performance, position the sensor on the north side or in a shaded location to avoid direct sunlight exposure.

Additional Accessories:

For enhanced protection against sunlight and debris, consider using optional accessories such as the WS 01 or WS 04 sun and debris shields. The SS 02 sunshade variant is also available upon request for further customization.

Enhance your temperature monitoring capabilities with the S+S ATF2 LM235Z temperature sensor today!
