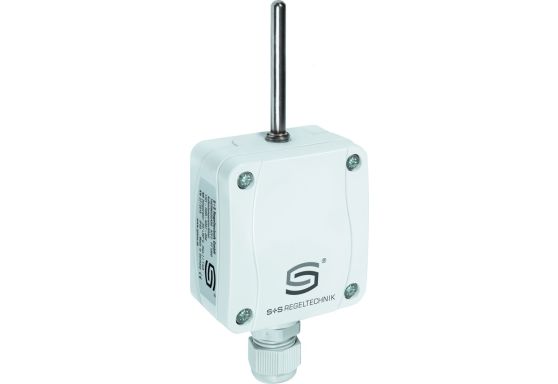

S+S Outside temperature sensor / wet room temperature sensor - ATF2 Ni1000

Introduction

Discover the versatility and performance of the S+S Outside temperature sensor / wet room temperature sensor - ATF2 Ni1000 from S+S Regeltechnik GmbH. This external thermometer is designed to provide accurate temperature readings for outdoor and humid environments, making it an ideal choice for a wide range of applications.

Key Features

• Designed for outdoor temperature and wet room temperature monitoring
• Constructed with a durable plastic housing and quick-release screws
• Ideal for mounting on exterior walls, in greenhouses, industrial areas, and agricultural settings
• Features a Ni1000 sensor with a temperature range of -50°C to +90°C
• IP65 rated housing for protection against environmental elements

Installation and Usage

The ATF2 Ni1000 sensor is best mounted on the north side or in a sheltered location outdoors. For areas with direct sunlight exposure, additional sun and splash protection accessories are recommended for optimal performance.

Technical Specifications

• Sensor: Ni1000, DIN EN 43760, Class B
• Temperature Range: -50°C to +90°C
• Max. Humidity: < 95% RH, non-condensing air
• Housing: UV-resistant plastic, Polyamide material
• Dimensions: 72 x 64 x 37.8 mm
• Cable Gland: M16 x 1.5, with strain relief, replaceable
• Protection Rating: IP65 (according to EN 60 529)

Additional Information

Ensure accurate and reliable temperature monitoring with the S+S Outside temperature sensor / wet room temperature sensor - ATF2 Ni1000. Trust in the quality and precision of S+S Regeltechnik GmbH for your temperature sensing needs.

For the most up-to-date technical data on the product, refer to the manufacturer's website or authorized dealers for reliable information.
