S+S Outside temperature sensor / wet room temperature sensor - ATF2 NiTK

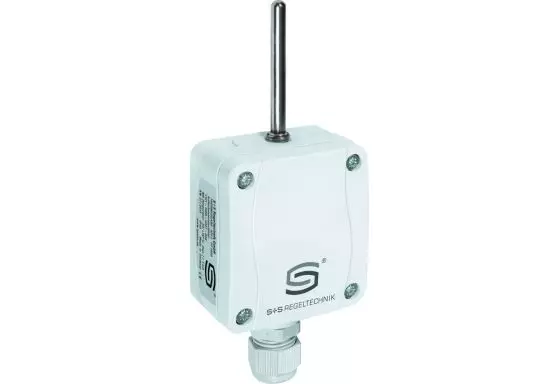

S+S Outside Temperature Sensor - ATF2 NiTK

Experience precise temperature monitoring with the S+S Outside Temperature Sensor – ATF2 NiTK from S+S Regeltechnik GmbH. This external wall resistance thermometer/weather sensor is designed for capturing outdoor temperature as well as wet room temperature, making it ideal for various applications such as outdoor temperature sensing, weather monitoring, and installation on exterior walls, in cooling and greenhouse environments, industrial facilities, and agricultural settings.

Features

• Sensor: Ni1000Tk5000 (TCR=5000ppm/K)
• Measurement Range: -50...+90 °C
• Material: UV-resistant polyamide plastic casing with 30% glass bead reinforcement
• Quick-release screws for easy installation
• Dimensions: 72 x 64 x 37.8 mm (Tyr 1)
• Cable Gland: M16 x 1.5 with strain relief, replaceable
• Protection Class: IP 65 (according to EN 60 529)

Benefits

The S+S Outside Temperature Sensor – ATF2 NiTK provides accurate temperature readings for outdoor and wet room environments. Its durable construction and easy installation make it a reliable solution for temperature monitoring in various settings, ensuring efficient operation and optimal performance.

Technical Specifications

• Ideal for outdoor temperature monitoring and wet room temperature sensing
• Designed for use in diverse environments such as exterior walls, cooling and greenhouse facilities, industrial areas, and agricultural sectors
• Quick-release screws for hassle-free installation
• UV-resistant polyamide housing for durability
• Wide measurement range of -50...+90 °C
• IP 65 protection class for reliable performance
