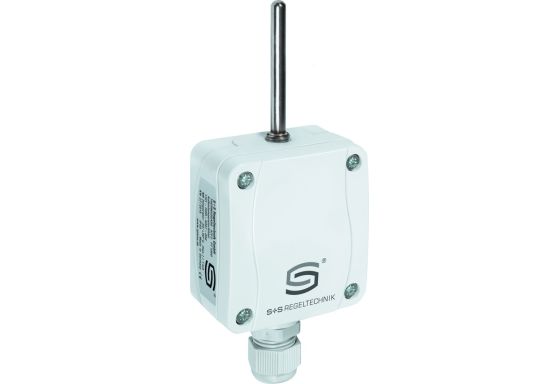

S+S Outside temperature sensor / wet room temperature sensor - ATF2 NTC10K

S+S Outside Temperature Sensor - ATF2 NTC10K

Enhance your temperature monitoring system with the S+S Outside Temperature Sensor - ATF2 NTC10K from S+S Regeltechnik GmbH. This advanced sensor is designed for outdoor and wet room temperature sensing applications, offering precise and reliable measurements for various environments.

Key Features

• Manufacturer Part Number: 1101-1051-5001-000
• Passive output sensor ideal for outdoor and wet room temperature measurement
• Durable housing made of impact-resistant plastic with quick-release screws
• Measures outdoor temperature in environments such as cooling houses, industrial halls, and agriculture
• NTC 10kOhm sensor with a temperature range of -50°C to +90°C
• UV-resistant plastic housing with quick-release screws for easy installation
• Dimensions: 72 x 64 x 37.8 mm (Type 1)
• IP 65 protection class for reliable performance in challenging conditions

Advantages and Benefits

The S+S Outside Temperature Sensor - ATF2 NTC10K provides precise temperature readings in outdoor and humid environments, ensuring efficient monitoring and control. With its durable construction and versatile application options, this sensor is a reliable solution for various temperature sensing needs. The NTC 10kOhm sensor offers a wide temperature range, making it suitable for a range of applications.

Technical Specifications

• Measurement Range: -50°C to +90°C
• Maximum Air Humidity: < 95% RH, non-condensing air
• Material: UV-resistant plastic, Polyamide 30% glass ball reinforced
• Color: Traffic white (similar to RAL 9016)
• Cable Gland: M16 x 1.5, with strain relief, interchangeable
• Protection Class: IP 65 (according to EN 60 529)

For the most up-to-date technical data on the S+S Outside Temperature Sensor - ATF2 NTC10K, please refer to the official manufacturer's website or data sheet. Dive deeper into the capabilities of this sensor to enhance your temperature monitoring systems.
