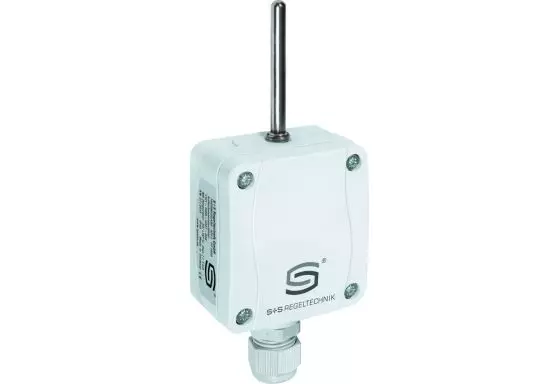

S+S Outside temperature sensor / wet room temperature sensor - ATF2 Pt100

Introduction:

Experience precise temperature monitoring with the S+S Outside Temperature Sensor / Wet Room Temperature Sensor - ATF2 Pt100 from S+S Regeltechnik GmbH. This cutting-edge thermometer is designed for outdoor and humid area temperature tracking, making it an ideal choice for a variety of applications.

Key Features:

• High-quality Pt100 sensor according to DIN EN 60751, Class B
• Wide temperature range of -50°C to +90°C for versatile use
• Durable UV-resistant plastic housing with quick-release screws for easy installation
• Designed for outdoor mounting on walls, in greenhouses, industrial settings, and more
• Compact dimensions of 72 x 64 x 37.8 mm for convenient placement
• IP 65 protection rating ensuring reliability in various environments

Advantages for Customers:

By choosing the S+S ATF2 Pt100 temperature sensor, customers benefit from accurate temperature readings in outdoor and humid locations. The durable construction and secure mounting options provide long-lasting performance, even in challenging conditions. With a wide temperature range, this sensor is versatile and suitable for a range of applications, offering customers flexibility and peace of mind.

Technical Specifications:

• Sensor Type: Pt100 according to DIN EN 60751, Class B
• Temperature Range: -50°C to +90°C
• Allowed Air Humidity: < 95% RH, non-condensing air
• Housing Material: UV-resistant plastic, polyamide with 30% glass bead reinforcement
• Quick-release screws for easy installation
• Dimensions: 72 x 64 x 37.8 mm
• Cable Gland: M16 x 1.5, with strain relief, replaceable, max. inner diameter 10.4 mm
• Protection Rating: IP 65 (according to EN 60 529)
