S+S Screw-in tempe­rature sensor / immersion tempe­rature sensor with neck tube (stepped once) - ETF7 Pt100 100mm

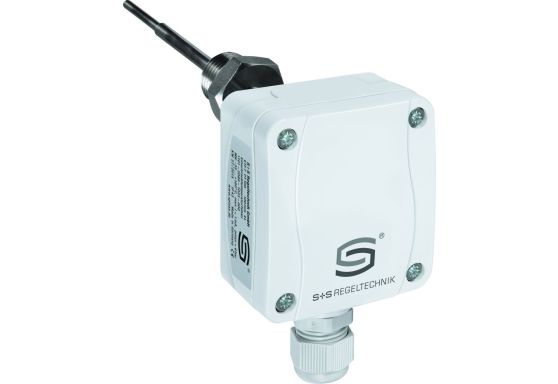

S+S Screw-in Temperature Sensor ETF7 Pt100 100mm

Experience rapid and precise temperature sensing with the S+S Screw-in Temperature Sensor ETF7 Pt100 100mm from S+S Regeltechnik GmbH. This thermowell sensor is designed for quick response times, making it ideal for applications with fast temperature or control processes, such as in hydraulic systems.

Technical Specifications

• Sensor Type: Pt100, DIN EN 60751, Class B
• Measuring Range: -35 to +150 °C
• Air Humidity: < 95% RH, non-condensing
• Housing Material: UV-resistant polyamide with 30% glass ball reinforcement
• Dimensions: 72 x 64 x 37.8 mm (Type 1)
• Installation Length: 100 mm
• Cable Gland: M 16 x 1.5 with strain relief, replaceable
• Process Connection: G ½" screw-in stud
• Protection Tube Material: Stainless Steel 1.4571, V4A
• Protection Tube Dimensions: G ½", SW 27, max pressure = 6 bar
• Neck Tube Length: 25 mm
• Installation Length: 100 - 250 mm
• Protection Rating: IP 65 (according to EN 60529)
• Manufacturer’s EAN: 4251325601458

Advantages

• Rapid response time for quick control processes
• Durable construction with stainless steel protection tube
• Easy installation with quick-release housing
• Accurate temperature measurement in challenging environments

Benefits

• Reliable temperature monitoring in hydraulic systems
• Ensures precise control of temperature-sensitive processes
• Long-lasting performance for industrial applications
• Provides accurate readings in a wide temperature range
