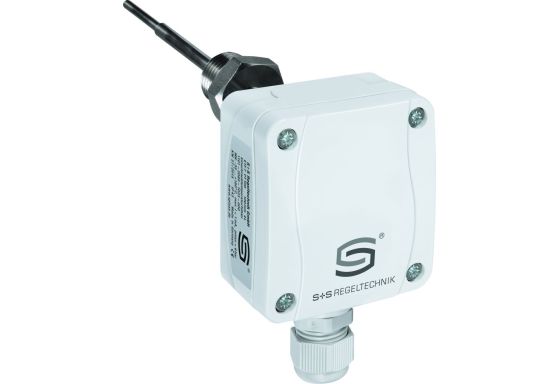

S+S Screw-in tempe­rature sensor / immersion tempe­rature sensor with neck tube (stepped once) - ETF7 Pt100 150mm

S+S Screw-in Temperature Sensor / Immersion Temperature Sensor

Discover the reliable and efficient S+S Screw-in temperature sensor / immersion temperature sensor with neck tube (stepped once) - ETF7 Pt100 150mm from S+S Regeltechnik GmbH. Ideal for applications requiring rapid temperature response, such as hydraulic systems, this sensor boasts exceptional performance and durability.

Key Features

• High-performance Pt100 sensor with DIN EN 60751 standard
• Temperature range of -35 to +150 °C
• Robust construction with UV-resistant polyamide housing
• Quick-release housing cover with screws
• Compact design with dimensions of 72 x 64 x 37.8 mm
• 150 mm probe length for versatile installation
• M16 x 1.5 cable gland with replaceable strain relief
• G ½" threaded process connection
• Stainless steel protective tube with maximum pressure of 6 bar
• IP 65 protection rating for reliable performance

Technical Specifications

• Manufacturer Part Number: 1101-2080-1033-000
• Response Time: Very fast, suitable for rapid temperature control processes
• EAN: 4251325601465
• Fully tested and certified by TÜV SÜD (Report No. 713139052)

Benefits

The S+S Screw-in temperature sensor / immersion temperature sensor offers swift response times, making it perfect for dynamic temperature applications. Its durable construction ensures long-term reliability, while the IP 65 protection rating safeguards it against environmental factors. The user-friendly design and precise temperature readings make it a valuable addition to any industrial setting.

Technical Data

For the latest technical data on the S+S Screw-in temperature sensor / immersion temperature sensor, refer to official sources such as the manufacturer's website, data sheets, or authorized dealers. Stay informed with accurate and up-to-date information to optimize your temperature monitoring systems.
